OMPC20699: Original GreenStar™ Display—Guidance, Block File: OUO6050_00020FE_19

Transferring Data to Display

1. Press letter button "B" Transfer from Data Card To GSD.

A-Enter Field Number (1-250)
B-Transfer from Data Card to GSD
C-Transfer to Data Card from GSD
D--
E--
F--
G-Return to TRACKING

SETUP - Transfer Track Data

OUO6050,00020FE -19-29NOV06-1/3

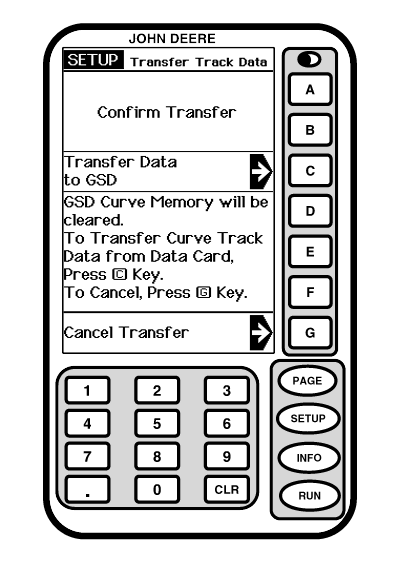

2. A confirm Transfer screen will appear.

3. Press letter button "C" to initiate the transfer to the card.

4. A curve transfer progress screen will appear.

A-Confirm Transfer
B--
C-Transfer Data to GSD
D-To Transfer Curve Track Data From Data Card, Press (C) Key
E-To Cancel, Press (G) Key
F--
G-Cancel Transfer

SETUP - Transfer Track Data

OUO6050,00020FE -19-29NOV06-2/3

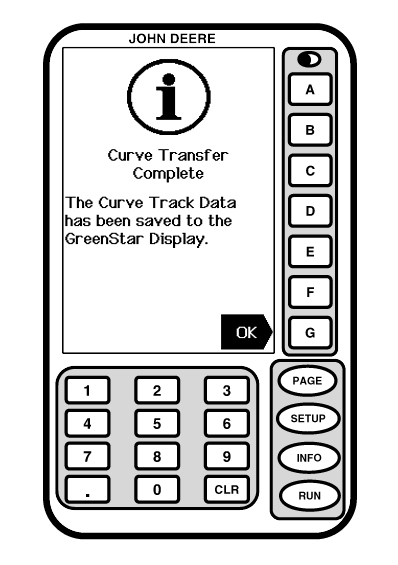

5. When transfer is complete the following message will be displayed:

The Curve Track Data has been saved to the GreenStar Display.

Press letter button "G" to confirm

6. The GreenStar display will automatically reboot.

Curve Transfer Complete

OUO6050,00020FE -19-29NOV06-3/3
