OMPC20699: Original GreenStar™ Display—Guidance, Block File: OUO6050_00020FF_19

Transferring Data to Data Card

1. Press letter button "C" Transfer to Data Card From GSD.

A-Enter Field Number (1-250)
B-Transfer from Data Card to GSD
C-Transfer to Data Card from GSD
D--
E--
F--
G-Return to TRACKING

SETUP - Transfer Track Data

OUO6050,00020FF -19-25OCT06-1/3

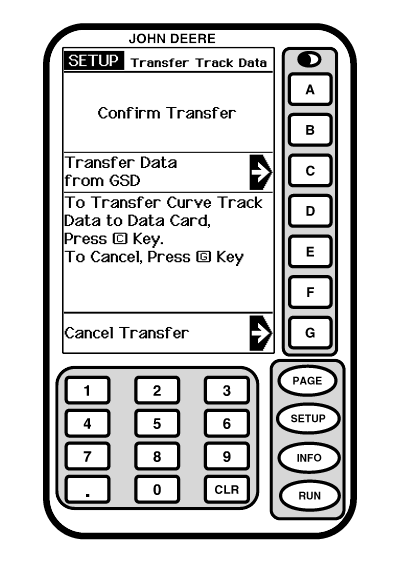

2. A confirm Transfer screen will appear.

3. Press letter button "C" to initiate the transfer to the card.

4. A curve transfer progress screen will appear.

A-Confirm Transfer
B--
C-Transfer Data from GSD
D-To Transfer Curve Track Data To Data Card, Press (C) Key
E-To Cancel, Press (G) Key
F--
G-Cancel Transfer

SETUP - Transfer Track Data

OUO6050,00020FF -19-25OCT06-2/3

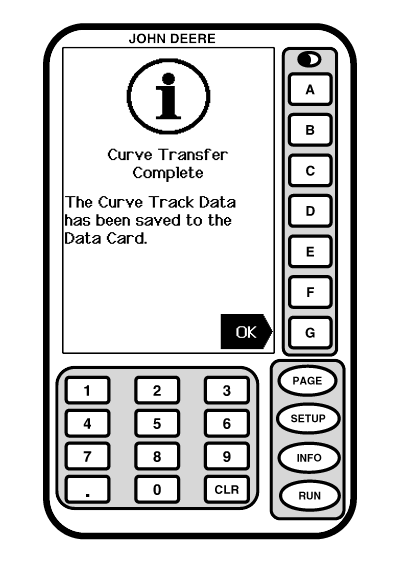

5. When transfer is complete the following message will be displayed.

Curve Transfer Complete. The Curve Track Data has been saved to the Data Card.

Press letter button "G" to confirm.

Curve Transfer Complete

OUO6050,00020FF -19-25OCT06-3/3
