Clearing Stored CurveTrack Data

IMPORTANT: The operator must stop machine before clearing Curve Track stored data.

When operating Curve Track with ACCUDEPTH ™ , after operator presses letter button next to CLEAR CURVE TRACK STORED DATA, system prompts user to cycle power to clear memory.

NOTE: The amount of free memory will be displayed in RUN - TRACKING screen.

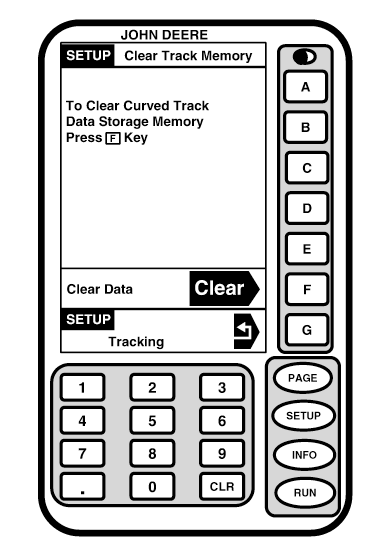

When beginning a new field contents of stored data must be cleared. To clear stored data press letter button next to CLEAR CURVE TRACK STORED DATA on SETUP - TRACKING - PAGE 1 screen. SETUP - CLEAR TRACK MEMORY screen will appear. Press F button to clear memory or G button to cancel.

A--
B-Clear Curved Track Instruction
C--
D--
E--
F--
G-Return

ACCUDEPTH is a trademark of Deere & Company

OUO6050,0002102 -19-25OCT06-1/1
