Tracking Lead Compensation

NOTE: This feature is disabled when working in Curve Track.

Tracking lead compensation is used to calculate a position in front of receiver more closely associated with front of machine. Tracking lead compensation helps minimize over steering when lining up with a track and position delays observed when making a turn. Value entered will depend on speed of travel, type of machine, and user preference. Default setting for lead compensation is 127 cm (50 in.). Settings range from 0-250 cm (0-100 in).

Recommended Tracking Lead Compensation
Machine Type Lead Compensation
Sprayer 183 cm (72 in)
Combines 183 cm (72 in)
Row Crop Tractor 71 cm (28 in.)
Articulated Tractor 203 cm (80 in.)
Track Tractors 127 cm (50 in.)

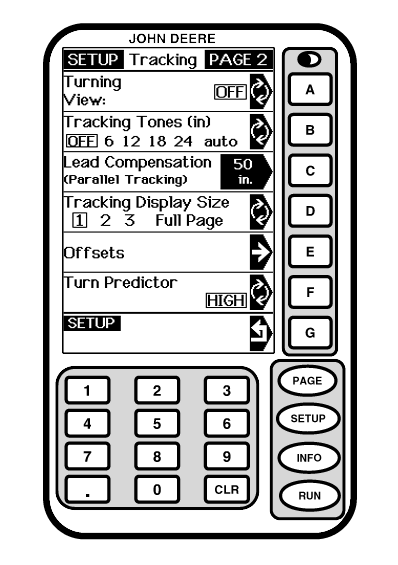

A-Turning View
B-Tracking Tones
C-Lead Compensation
D-Tracking Display Size
E-Offsets
F-Turn Predictor
G-Return

PC9617

OUO6050,000213A -19-25OCT06-1/1
