Offsets

If an offset is required, press letter button next to OFFSETS to bring up IMPLEMENT OFFSET and RECEIVER OFFSET screens.

A-Turning View
B-Tracking Tones
C-Lead Compensation
D-Tracking Display Size
E-Offsets
F-Turn Predictor
G-Return

OUO6050,000213C -19-25OCT06-1/3

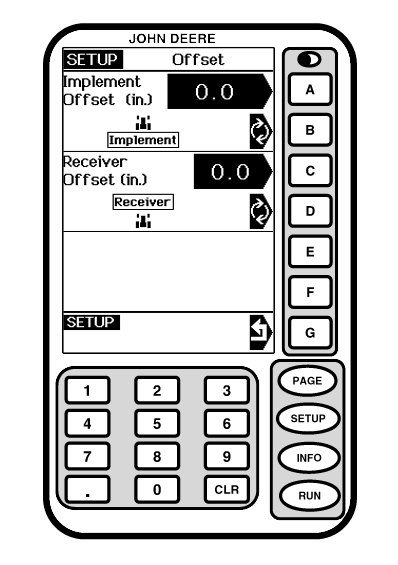

This feature is used to eliminate skips or overlaps due to an offset receiver or implement, or an implement that does not track directly behind machine. Press letter button next to RECEIVER OFFSET to highlight cell.

A-Implement Offset
B-Implement Offset Toggle
C-Receiver Offset
D-Receiver Offset Toggle
E--
F--
G-Return

OUO6050,000213C -19-25OCT06-2/3

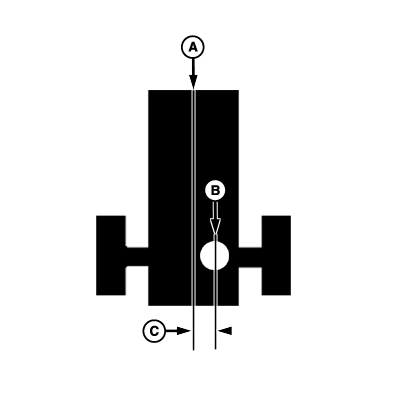

The distance between center of machine (A) and center of receiver (B) to determines receiver offset (C). Enter amount of offset in centimeters/inches using numeric keypad. Press letter button next to RECEIVER OFFSET again to save offset amount. Press letter button next to RECEIVER to select direction of offset. If no receiver offset is required, then RECEIVER OFFSET cell should read 0.

Press letter button next to IMPLEMENT OFFSET to highlight cell. Enter amount of offset in centimeters/inches using numeric keypad. Press letter button next to IMPLEMENT OFFSET again to save offset amount. Press letter button next to IMPLEMENT to select direction of offset. If no implement offset is required, then IMPLEMENT OFFSET cell should read 0.

The two following scenarios explain where the implement offset is used.

A-Center of Machine
B-Center of Receiver
C-Receiver Offset

OUO6050,000213C -19-25OCT06-3/3
