Once tractor is at end of row operator must turn system to next pass. By turning steering wheel, AutoTrac is deactivated. Operator must turn onto next track.

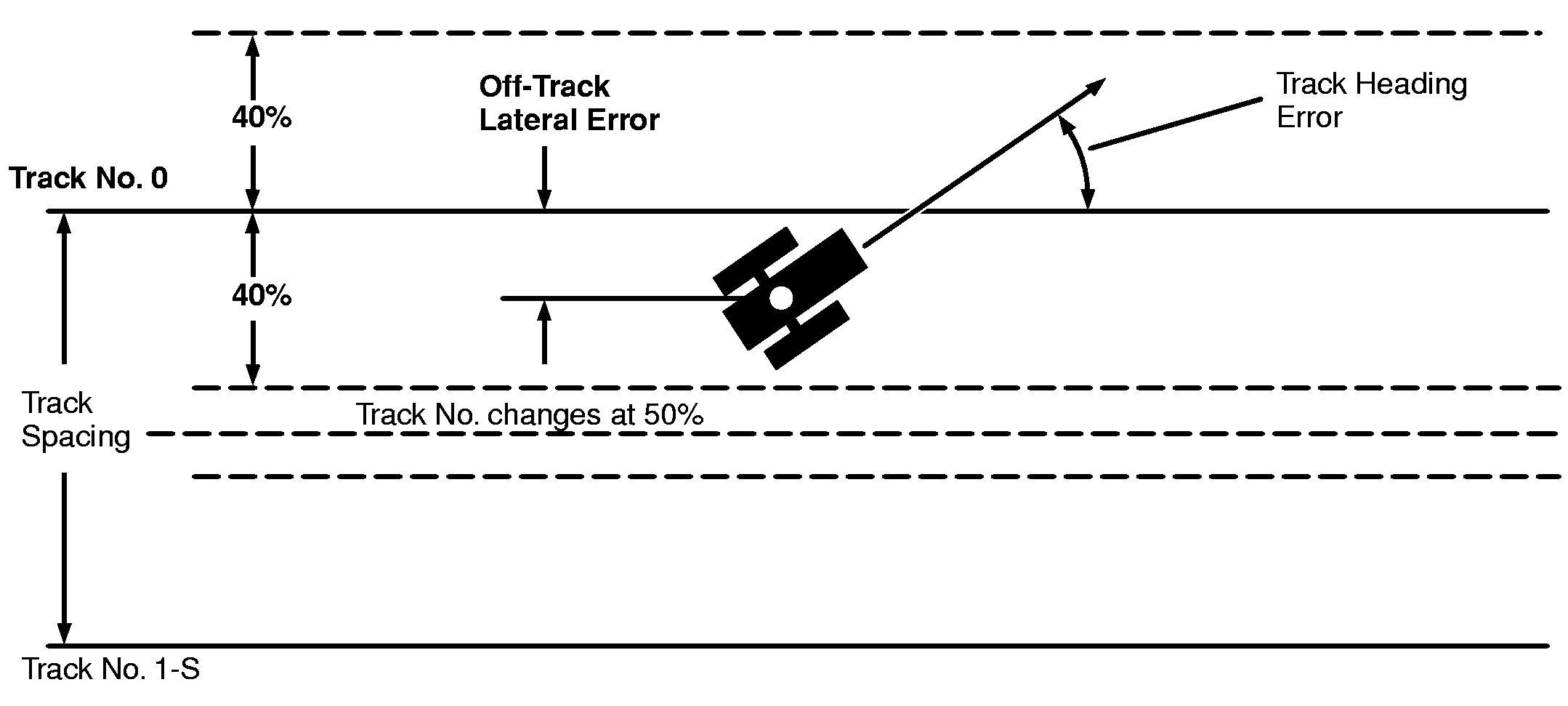

AutoTrac can be activated by pressing resume switch only after following conditions are met:

1. System is enabled (steering ON on RUN - PAGE).
2. The machine is within 40% of track spacing.
3. Vehicle heading is within 80° degrees of desired track if speed is less than 10 km/h or Vehicle heading is within 45° degrees of desired track if speed is higher than 10 km/h.

OUO6050,0002373 -19-28NOV06-1/1
