Shift Track

NOTE: Shift Track is only available in Full Page Mode. Since all tracks are based on original track 0, all tracks will be shifted by using this feature.

Shift track is used to adjust position of machine left, center or right of set track. Shift track can be used to compensate for GPS drift. Drift is inherent to any satellite-based, differentially corrected GPS system.

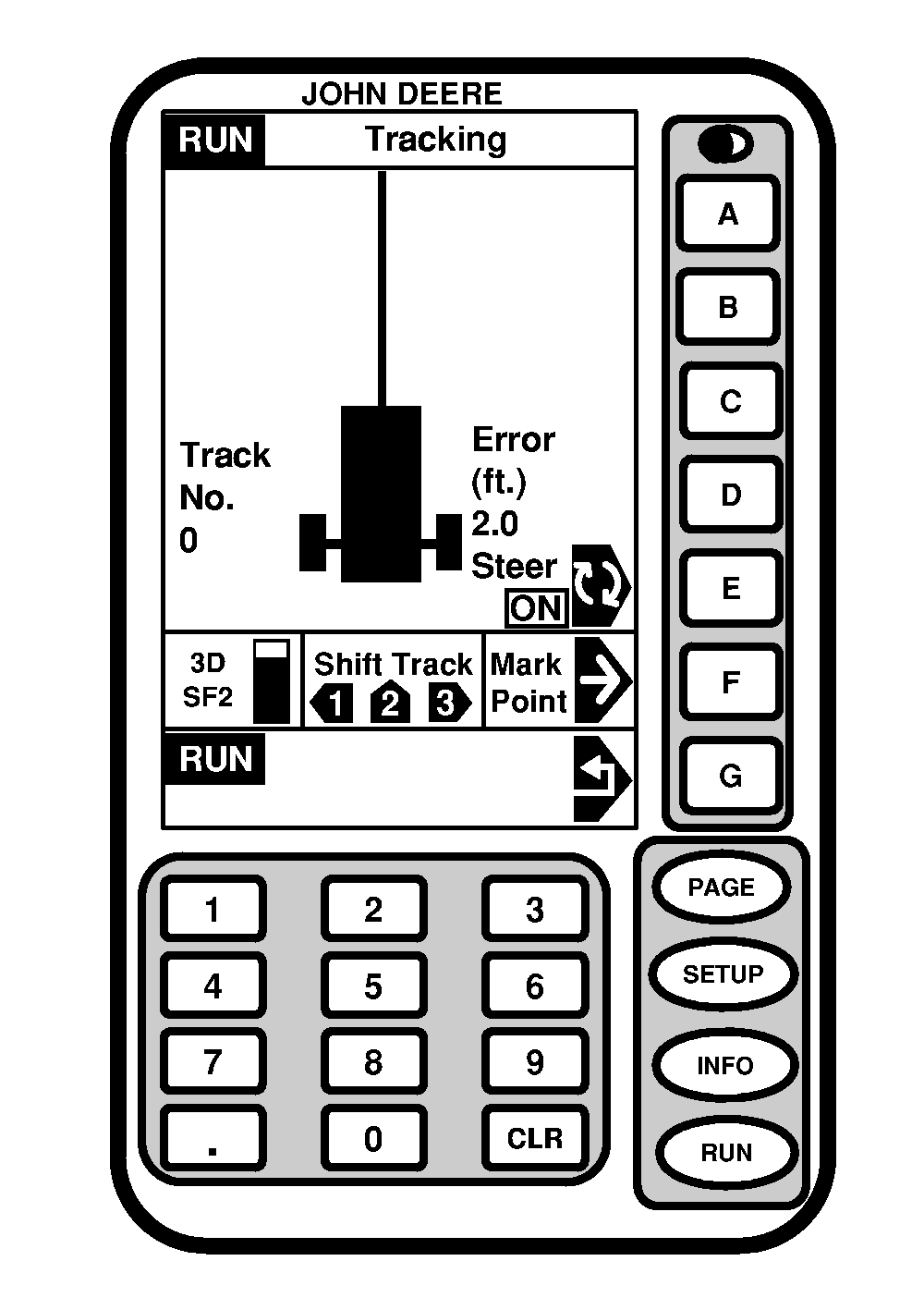

Shift Track allows an operator to move A-B line to right or left in steps of 3 cm or (0.1 ft.) depending on selection of unit standard. An operator may also re-center displayed line on icon.

To move line to left, press 1 on numeric keypad. To move line to right, press 3 on numeric keyboard. Each time button is pressed, line will move 3 cm or (0.1 ft.) to left or right. To re-center line on vehicle's current location press 2 on numeric keypad.

Shift Track can be used to compensate for GPS drift that occurs over time.

OUO6050,0002374 -19-28NOV06-1/1
