OMPC20699: Original GreenStar™ Display—Guidance, Block File: OUO6050_0002383_19

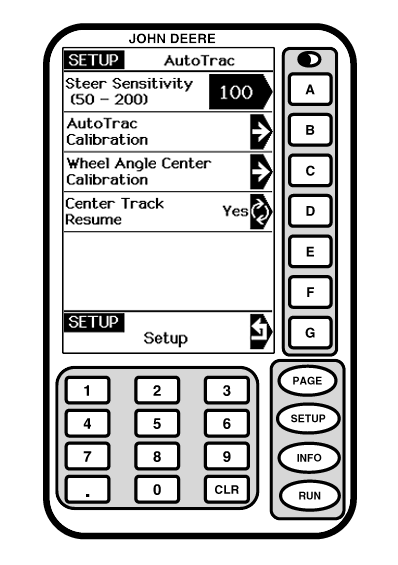

Enabling Centre track on SPFH: Press Center Track Resume key "D" to display Yes.

A-Steer Sensitivity (50-200)
B-AutoTrac Calibration
C-Wheel Angle Center Calibration
D-Center Track Resume
E--
F--
G-Return to Setup

SETUP - AUTOTRAC

OUO6050,0002383 -19-29NOV06-1/2

Disabling Centre track on SPFH: Press Centre Track Resume key "D" to display NO.

A-Steer Sensitivity (50-200)
B-AutoTrac Calibration
C-Wheel Angle Center Calibration
D-Center Track Resume
E--
F--
G-Return to Setup

SETUP - AUTOTRAC

OUO6050,0002383 -19-29NOV06-2/2
