Reports and Totals

Press the Reports and Totals button to show the following page.

The current totals page will display instant values.

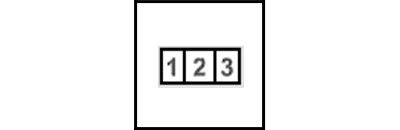

PC9669

Reports and Totals Softkey

JS56696,0000081 -19-15OCT07-1/5

PC10539

Current Tab


A-Current Tab
B-Job Summaries Tab
C-Lifetime Tab
D-Actual Rate Per Area


E-Target Rate Per Area
F-Area Per Hour
G-Area Remaining on Current Tank Level


H-Traveling Speed
I-Pressure
J-Volume Remaining


K-Flow Per Minute
L-Area
M-Area/Reset Button

NOTE: Planter will not utilize all of the totals given on the "Current" page shown.

JS56696,0000081 -19-15OCT07-2/5

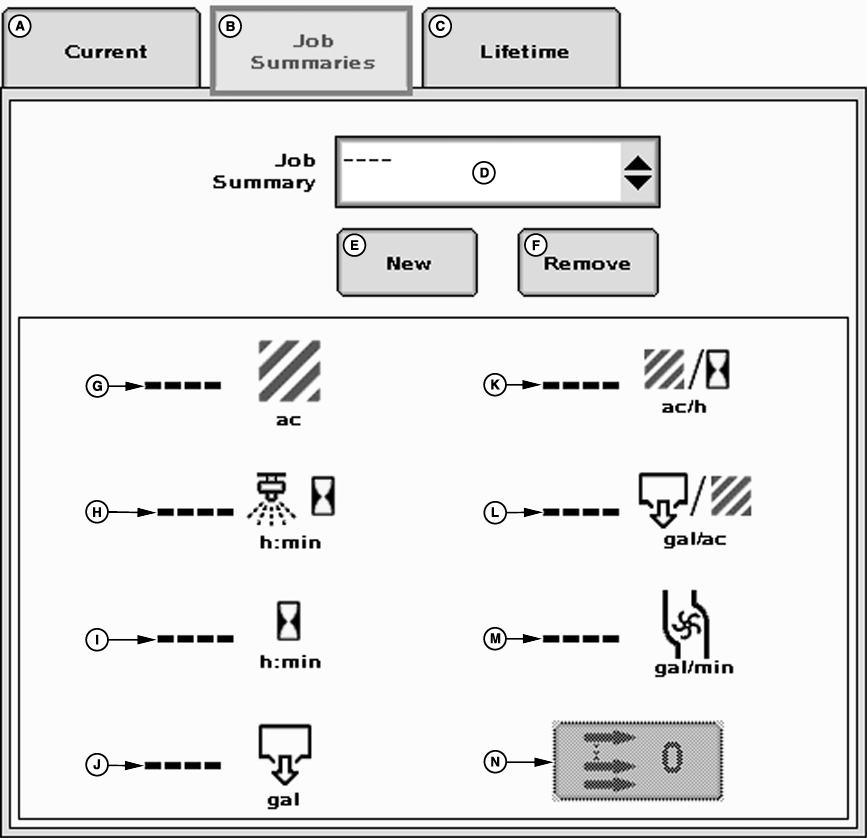

PC9667

Job Summaries Tab


A-Current Tab
B-Job Summaries Tab
C-Lifetime Tab
D-Job Summary Drop-Down Menu


E-New Button
F-Remove Button
G-Area
H-Time Spent Spraying


I-Total Hours Spent on Job
J-Volume
K-Average Area Per Hour


L-Average Volume Per Area
M-Average Flow Per Minute
N-Zero Button

The job summaries page will keep track of totals listed on the job page. Only values for the currently selected job summary will be incremented.

Job summaries are stored on the controller. The controller can store up to 6 different jobs.

JS56696,0000081 -19-15OCT07-3/5

To create a new job follow these steps:

1. Press the "New" button and a keypad will appear.
2. Type in a name for the current job on the key pad.
3. Press enter.
4. Select the desired job from the job summary drop-down menu.

Jobs that are no longer needed may be deleted by pressing the remove button.

Totals can be reset to zero by pressing the zero button.

JS56696,0000081 -19-15OCT07-4/5

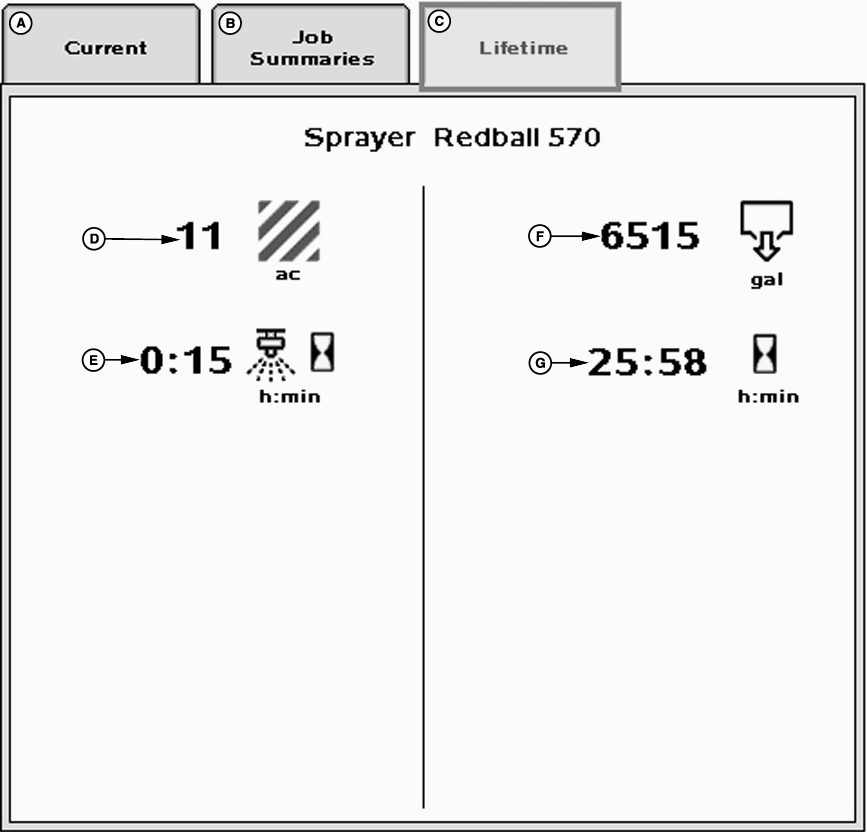

PC9668

Lifetime Tab


A-Current Tab
B-Job Summaries Tab


C-Lifetime Tab
D-Total Area


E-Time Spent Applying
F-Total Volume


G-Total Hours

NOTE: Job summaries and lifetime totals is not available for planters.

The lifetime page keeps track of all totals for the lifetime of the implement selected in the OPERATING

GS2 RATE CONTROLLER section of the operator's manual.

JS56696,0000081 -19-15OCT07-5/5
