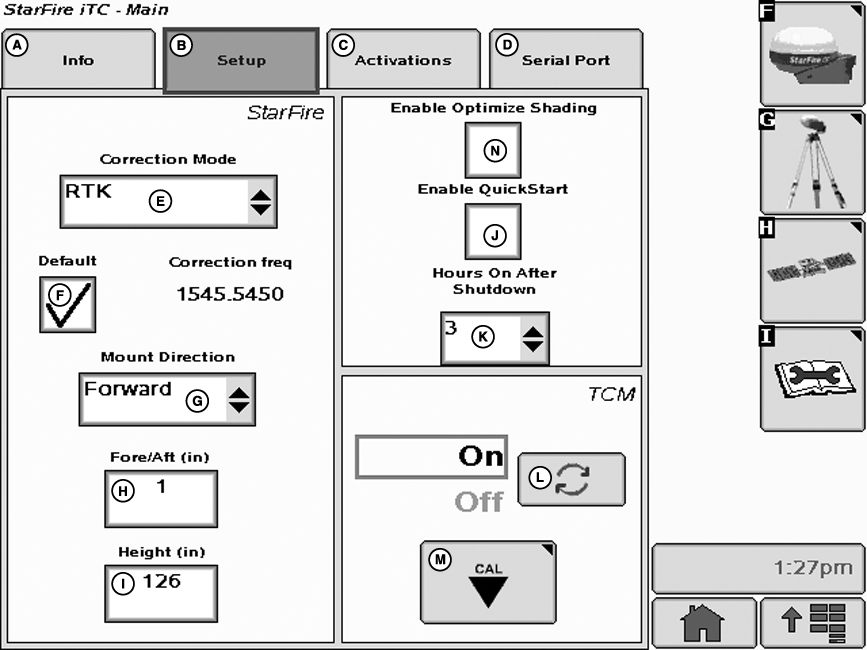

SETUP tab

A-Info tab B-Setup tab C-Activations tab D-Serial Port tab

E-Correction Mode F-Default Correction Frequency G-Mount Direction

H-Fore/Aft I-Height J-Enable QuickStart K-Hours On After Shutdown

L-TCM On/Off toggle button M-TCM Calibration button N-Enable Optimized Shading

The SETUP tab allows for setup of the following: Correction Mode Correction Frequency Mount Direction Fore/Aft Height QuickStart

Hours ON After Shutdown TCM Calibration Differential correction is the process by which GPS accuracy is improved. (See OVERVIEW: SF1/SF2 Activations, SF2 Subscription under Activations section.)

JS56696,000059B -19-13MAY09-1/1
