Height

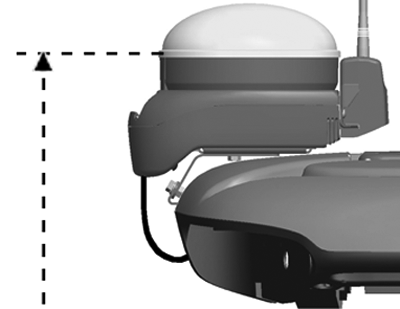

Height is measured from ground to middle of receiver dome.

Select input box and use numeric keypad to enter height.

PC12016

JS56696,00005A0 -19-13MAY09-1/2

IMPORTANT: Under or over compensation for vehicle roll angles will occur if height is incorrectly entered during setup.

Example: On a 10 degree slope with a StarFire height error of 30.5 cm (12 in.) will result in a position offset of 5 cm (2 in.) on ground).

Factory default setting is 320 cm (126 in.). On some AutoTrac-equipped vehicles, height value will be automatically detected and entered during power up. Because this dimension is critical for proper operation of TCM and can vary due to vehicle configuration and tire sizes, operator should still measure actual distance to be entered each time TCM is installed on a different vehicle.

NOTE: Use chart for example StarFire Height values.

Chart figures are approximate heights.

NOTE: For greatest accuracy, manually measure receiver height distance.

John Deere Vehicle StarFire Original Shroud Height cm (in.) Deluxe Shroud Height cm (in.)
6000 Series Tractors 280 cm (111 in.) 291 cm (114.5 in.)
7000 Series Tractors 305 cm (120 in.) 314 cm (123.5 in.)
8000 Series Tractors 320 cm (126 in.) 329 cm (129.5 in.)
8000T Series Tractors 320 cm (126 in.) 329 cm (129.5 in.)
9000 Series Tractors 361 cm (142 in.) 370 cm (145.5 in.)
9000T Series Tractors 356 cm (140 in.) 365 cm (143.5 in.)
4700 Series Sprayers 389 cm (153 in.) 396 cm (156 in.)
4900 Series Sprayers 396 cm (156 in.) 396 cm (156 in.)
Combine 396 cm (156 in.) 396 cm (156 in.)



NOTE: Actual height may vary depending on tire size or inflation.
