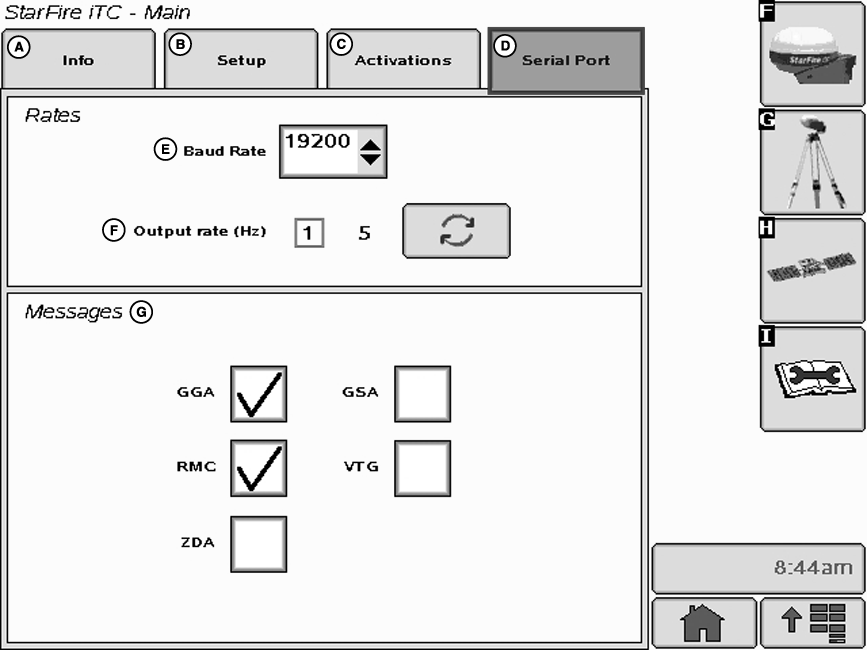

SERIAL PORT tab

A-Info tab B-Setup tab

C-Activations tab D-Serial Port tab

E-Baud Rate F-Output Rate

G-Messages

Configure RS232 and NMEA message information. Rates: Define Baud Rate by selecting list input Baud Rates: 4800, 9600, 19200, 38400, 57600 and 115200

Define output rate by toggling 1Hz or 5Hz Messages: Allows for output of 5 different NMEA strings: GGA, GSA, RMC, VTG, and ZDA

JS56696,00005A6 -19-13MAY09-1/1
