RTK softkeyAllows for setup and display of RTK information
RTK can be operated in five modes
IMPORTANT: Anytime the radio is reconfigured or changed, power must be cycled at the GPS receiver before continuing. Vehicle Mode Select for receiver on vehicle.
Vehicle Repeater Mode Allows for the vehicle to accept and repeat RTK corrections.

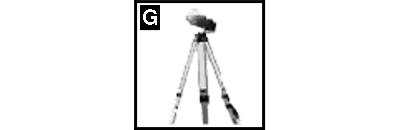

Quick Survey Base Mode Select if exact location of guidance tracks do not need to be stored for future applications. If Quick Survey Base Mode is used to establish rows or paths that will be used at a later date, location or Track 0 must be stored using Current Track 0 in Guidance Setup › Set Track 0. When Track 0 is recalled, a one-time use of Shift Track feature will be needed to align vehicle on previous tracks. See Setup Quick Survey Base Mode section.
|
|
JS56696,00005AE -19-13MAY09-1/2 |
|
Absolute Survey Base Mode Select if exact location of guidance tracks need to be stored for future guidance applications without relying on visual reference for track position to align using Shift Track feature. Track 0 must be stored using Current Track 0 in Guidance Setup › Set Track 0 in order to follow previously used tracks. Absolute Base Mode requires 24-hour self survey to be conducted on location before first use. After survey is completed, base station will then transmit corrections. If base station is moved to another position and then returned to original surveyed position, it is very important that base station is mounted in exact same position. Any difference between original surveyed position and mounted position will result in offset of corrected position. For this reason, it is important to mount receiver to a fixed position like a building or post mounted in concrete.
OFF Mode This mode disables all RTK functionality in receiver. RTK Operating Mode must be OFF for normal SF1 or SF2 operation on SF2-licensed receiver. |
JS56696,00005AE -19-13MAY09-2/2 |
