Vehicle Repeater
|
|
Press: MENU button >> StarFire iTC button >> RTK Softkey Select "Vehicle Repeater" from Operating Mode list box. In this mode the RTK vehicle radio not only receives messages but also rebroadcasts them (similar to a RTK repeater) to other RTK vehicles in close proximity. NOTE: Vehicle Repeater is identical to the Vehicle mode with the addition of having the radio rebroadcast the RTK messages. The Vehicle Repeater mode allows an RTK vehicle to function normally as an RTK vehicle while also |
transmitting the base correction signal to another RTK vehicle that does not have line-of-sight to the base station.

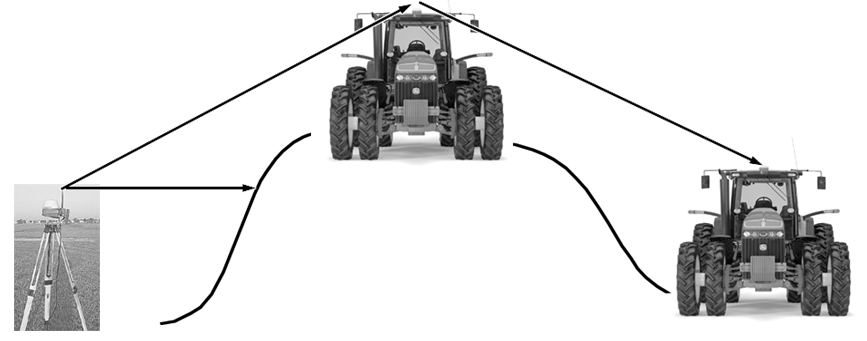

The `Vehicle Repeater' needs to be between the base station and the `Vehicle'. The `Vehicle Repeater' must be able to communicate with the base station. The `Vehicle' must then have either line of sight communication to the base station or `Vehicle Repeater'. IMPORTANT: There should be only ONE Vehicle Repeater or Repeater in the same vicinity with the same Network ID. |
JS56696,00005B0 -19-13MAY09-1/1 |
