Data Log

Screen: INFO - GPS - PAGE 2

Press: INFO >> STARFIRE ITC >> PAGE

Press letter button next to DATA LOG to access three data log pages. These pages consist of graphs showing GPS information for up to previous 60 minutes. Graphs can be used to show user any variation that has occurred in last 60 minutes.

A-Diagnostic Trouble Codes
B-Data Log (Diagnostic Use Only)
C-Frequency
Corrections Age
D-Satellites above Elevation Mask
Satellites Tracked
E-Satellites in Solution
PDOP
F-Roll Angle
G-Yaw Rate

JS56696,00005C8 -19-13MAY09-1/4

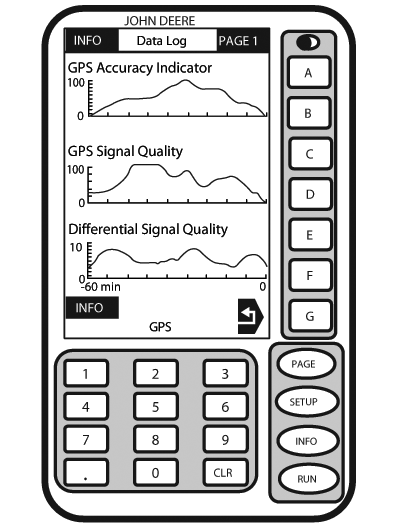

Screen: INFO - DATA LOG - PAGE 1

Press: INFO >> STARFIRE ITC >> PAGE >> DATA LOG

GPS Accuracy Indicator: GPS Accuracy Indicator is a relative indication of overall differential GPS performance.

GPS Signal Quality: GPS signal quality shows quality of signals being received from GPS satellites. Unlike GPS Accuracy Indicator, Signal Quality doesn't include WAAS, SF1, SF2, or amount of time signal is received.

Differential Signal Quality: Differential signal quality is strength of StarFire network signal (SF2 or SF1). Normal range is from 5 to 15, but maximum reading on indicator is 10. Numerical value is displayed to right of indicator. Any value above 5 is normal.

A-GPS Accuracy Indicator
B--
C-GPS Signal Quality
D--
E-Differential Signal Quality
F--
G-Return to GPS Info

JS56696,00005C8 -19-13MAY09-2/4

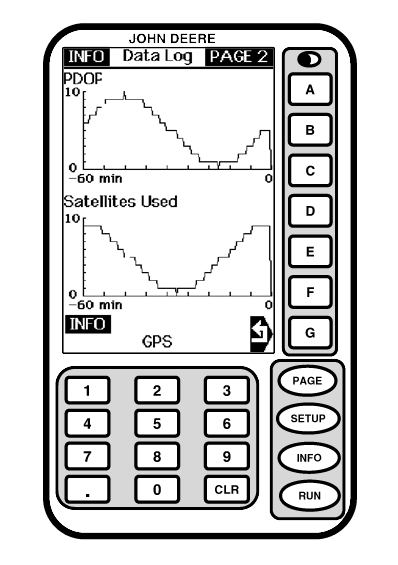

Screen: INFO - DATA LOG - PAGE 2

Press: INFO >> STARFIRE ITC >> PAGE >> DATA LOG >> PAGE

PDOP: (Position Dilution Of Precision) is a combination of vertical and horizontal error (or three dimensional). Lower PDOP is better. A value below 2 is considered optimal.

Satellites in Solution: Number of satellites that receiver is using in current position solution. Maximum is 12. Satellites in solution are not tracked until they get above 7° elevation mask.

A-PDOP
B--
C--
D-Satellites Used
E--
F--
G-Return to GPS Info

JS56696,00005C8 -19-13MAY09-3/4

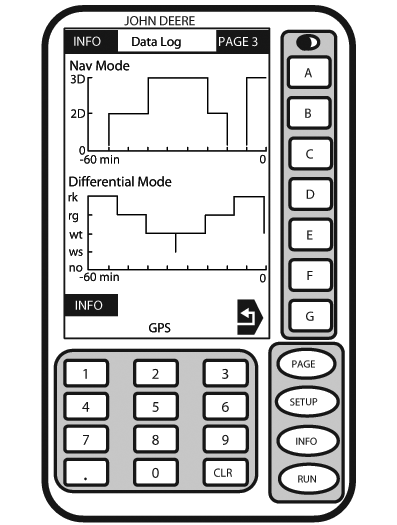

Screen: INFO - DATA LOG - PAGE 3

Press: INFO >> STARFIRE ITC >> PAGE >> DATA LOG >> PAGE >> PAGE

Position Mode: Position mode is represented as three different types; No Nav, 2D and 3D. This helps determine if GPS position has been dropped in last 60 minutes.

Differential Mode: This shows level of differential signal that you have been receiving over past 60 minutes. Level of signal that you purchased on your receiver will determine highest point on bar graph that you will see.

• RK - RTK
• RG - current SF2
• WT - original SF2
• WS - WAAS
• NO - none

A-Navigation Mode
B--
C--
D-Differential Mode
E--
F--
G-Return to GPS Info

JS56696,00005C8 -19-13MAY09-4/4
