Network ID

NOTE: 4000 network ID's are available, default ID is 1.

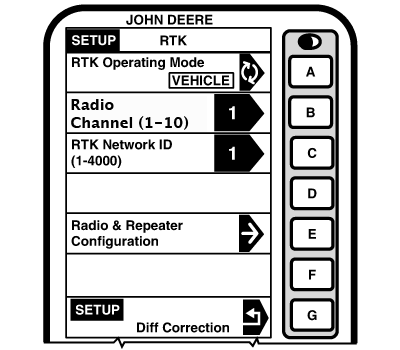

Screen: SETUP - RTK

Press: SETUP >> STARFIRE ITC >> DIFF CORRECTION SETUP >> RTK SETUP

Network ID for base station and vehicle receiver must match. If more than one base station with same Network ID numbers are within range, vehicle may lock on to either one of base stations. To prevent this from happening, be sure to use unique network ID.

A-RTK Operating Mode
B-Radio Channel
C-RTK Network ID
D--
E-Radio and Repeater Configuration
F--
G-Return to Differential Corrections Setup

JS56696,00005D1 -19-13MAY09-1/1
