A-Rod

B-Grounding Wire

C-Collar

D-Screw

CAUTION: Avoid serious injury or death to you or others. Contact your local utility companies to determine the location of gas, electric, or water lines. Placement of grounding rod must be a safe distance away from pipelines and cables.

IMPORTANT: Carefully choose location of rod so that it is away from paths where it could damage equipment or be damaged by equipment.

DO NOT route RTK Extension harness along any other power sources. Keep harness at least 2m (6 ft) away from any other AC power lines.

1. Attach harness between radio and receiver.

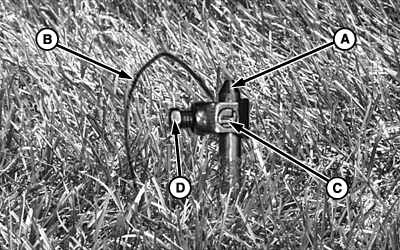

2. Carefully determine placement of rod (A) a safe distance away from pipelines and cables. Drive into ground leaving one end above surface.

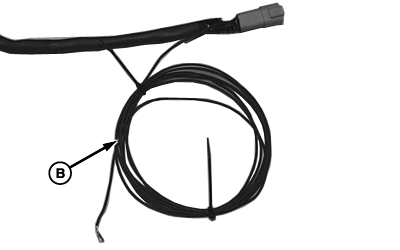

3. Route grounding wire (B) from harness to rod. Grounding wire may be extended if necessary to reach rod.

4. Remove insulation from end of grounding wire.

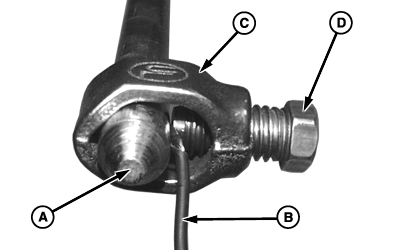

5. Place collar (C) over end of rod.

6. Place grounding wire between rod and screw (D).

7. Tighten screw.

8. Restrain harness to supporting structures as necessary to keep them away from equipment, damage, and to reduce wire strain.
