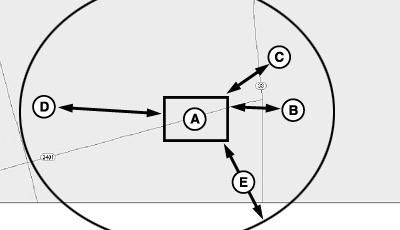

Example AAs you see in the picture, Field A (A) has 3 base stations located within a 9.7 km (6 miles) radius of the field. Although 3 base stations could be used to operate vehicles within this field, one base station must be selected to perform all field operations for that season and assigned/created AB lines. In this instance, the customer selected base station # 1 as it was centrally located to other farms. This means that when AB lines are being created, all vehicles and operations for that cropping season MUST use the same base station and location. Also, if AB lines were set up during subsequent seasons, the same original base station that was utilized in subsequent seasons must be used again at the same base location. AB lines must be assigned and associated to a specific base station in order to achieve absolute accuracy and repeatability. This absolute accuracy and repeatability is obtained during the base stations 24 hour absolute survey. Any time a base station is used to perform a field operation and it IS NOT the base station that was used to create that original AB line, errors will exist in the AB line position. These errors will vary from location to location, but may be as much as 3 to 5 inches off. A recommended practice is to assign every field to a specific base station. This will ensure that every operation performed in that field, including AB line creation, is utilizing the most accurate and repeatable correction signal possible. |
|
JS56696,00005DC -19-13MAY09-1/1 |
