StarFire Signal Monitoring System

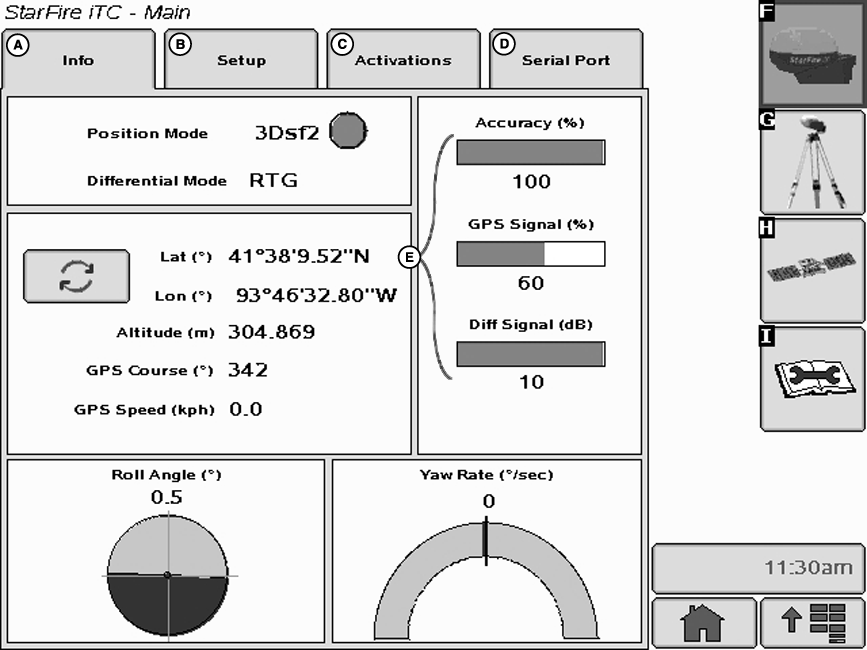

PC9553

StarFire iTC Main


A-Info
B-Setup


C-Activations


D-Serial Port


E-Accuracy (%), GPS Signal (%), Diff Signal (dB)

JS56696,00005E0 -19-13MAY09-1/5

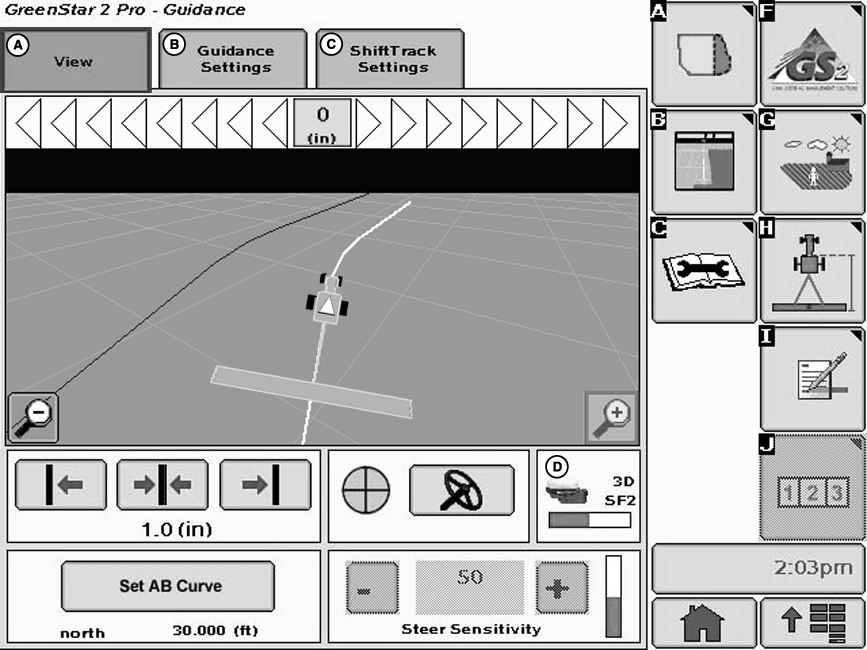

PC9554

GreenStar2 Pro - Guidance


A-View


B-Guidance Settings


C-ShiftTrack Settings


D-Signal Quality

The GS2 alerts the operator when the current StarFire signal is not accurate. There are three levels of this warning system (Normal, Marginal, and Poor). The levels are determined both by the StarFire Receiver's PDOP value and the number of satellites being

tracked. It is recommend that if the StarFire receiver is being used in high accuracy operations that care be taken when the StarFire Signal Monitoring system indicates that the current status is Marginal or Poor, as accuracy degradation may occur.

JS56696,00005E0 -19-13MAY09-2/5

NOTE: Operating in RTK or RTK-X, both PDOP and "Number of Satellites" are used to determine the level of warning.

Operating at a signal level less than RTK (SF2, SF1, WAAS, ect.) only PDOP will be used to determine the level of warning.

Normal

  • Green Bar
  • Normal Operating Range
  • Acceptable range for high accuracy operations
  • PDOP value: 0 - 3.5
  • 6 or more satellites in solution

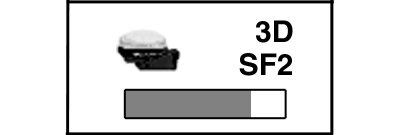

PC9387

Normal

JS56696,00005E0 -19-13MAY09-3/5

Marginal

  • Orange Bar with Permanent Caution Sign
  • Marginal Operating Range
  • Moderate risk of accuracy degradation - caution is advised
  • PDOP value: 3.5 - 4.5
  • 5 satellites in solution

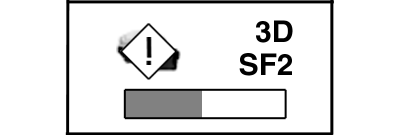

PC9388

Marginal

JS56696,00005E0 -19-13MAY09-4/5

Poor

  • Red Bar and Flashing Caution Sign
  • Poor Operating Range
  • Significant risk of accuracy degradation - high accuracy operations are not advised
  • PDOP value greater than 4.6
  • 4 satellites or less in solution
PC9388

Poor
