Antenna Height

RTK Shared Base Station: Antenna Height

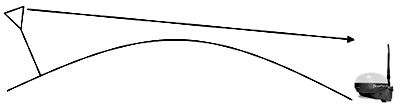

In order to maintain a good RTK Radio link, the antenna must be mounted high enough to radiate over the earth's curvature and any obstacles. As shown in the figure, the curve of the earth can block the signal from the RTK link. If the radiating base station radio antenna is mounted too low, the broadcasting range will be drastically reduced.

JS56696,00005E1 -19-13MAY09-1/1
