Utilizing Both The 91 m (300 ft) RTK Extension Harness And Low Loss Coax Cable

PC9555
PC9556

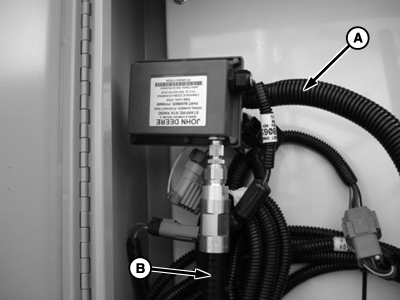

A-91.4 m (300 ft) RS232 Cable from receiver


B-Coax cable connection from antenna

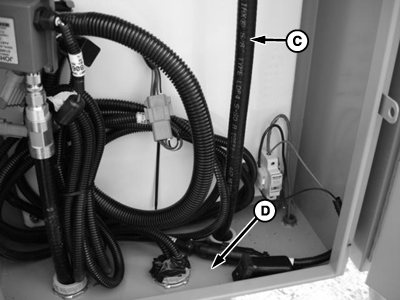

C-Coax running up tower to antenna


D-Coax looped under electrical box

This base station setup allows the placement of the receiver to be up to 91.4 m (300 ft) away from the

radio, giving the base station an absolute clear view of the sky.

JS56696,00005E3 -19-13MAY09-1/2

The radio, usually installed in a secure location at the bottom of a tower, is then connected to low loss coax that is ran up the tower to the antenna.

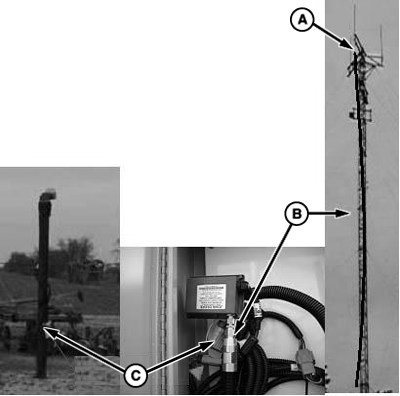

A-Antenna
B-Low-Loss Coax Cable
C-91.4 m (300 ft) RS232 Cable
