Utilizing A Repeater

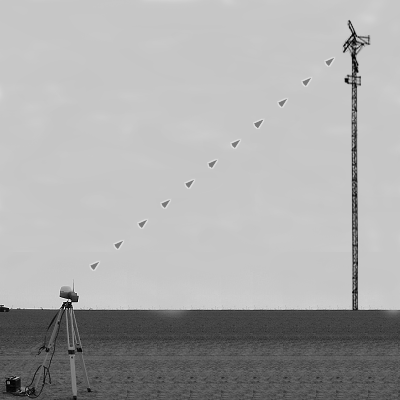

This base station setup allows the placement of the receiver and radio in a location with no obstructions. A repeater, with its own power source, is placed at an elevated location. The base station radio sends its signal up to the repeater and the repeater then sends out the signal.

NOTE: With this type of base station setup, no other repeaters can be used with the base station.
