Leaving The Radio And Receiver As A Single Unit

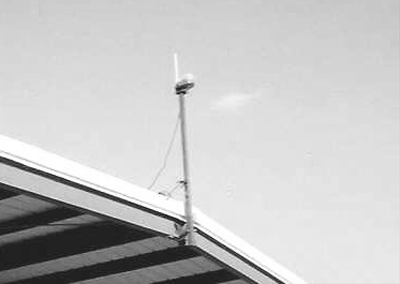

This base station setup keeps the receiver and radio as a single unit usually mounted in an elevated location.

IMPORTANT: Receiver must have a clear view of the sky and must be free of Multipathing.

The receiver must not move. Any movement of the receiver will result in movement of the vehicle receivers.
