Performance Monitor

Advanced Performance Monitor (APM)

Basic Performance Monitor (BPM)

The GS2 Display comes standard with many new performance monitor functions and user defined viewing layouts. Two different modes of performance monitor exist for the GS2 Display. The first is called the Basic Performance Monitor or BPM and is included in base equipment with every GS2 Display. The second is called the Advanced Performance Monitor or APM and is only available when connected to specific John Deere Vehicles.

John Deere CAN-Based vehicles with APM will be referenced throughout this section

Tractors 9030's
  8030's
  7030's 7020's
  6030's 6020's
Combines 9070,s 9050's
  9060's



John Deere CCD-Based vehicles with BPM will be referenced throughout this section

Tractors 9020's 9000's
  8020's 8010's 8000's
  7010's 7000's 6000's
Sprayers 4020's 4710's 4700's
  4030's



This section will cover features that are common to both the BASIC PERFORMANCE MONITOR (BPM) as well as ADVANCED PERFORMANCE MONITOR (APM)

OUO6050,0000CD5 -19-07OCT08-1/5

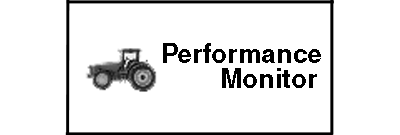

  • The BPM will be denoted in the display menu with the BPM Performance Monitor Icon.
PC8658

BPM Performance Monitor Icon

OUO6050,0000CD5 -19-07OCT08-2/5

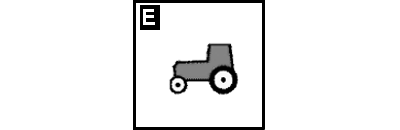

  • The APM will be denoted in the display menu with the APM Performance Monitor Icon.
PC9046

APM Performance Monitor Icon

OUO6050,0000CD5 -19-07OCT08-3/5

Basic Performance Monitor (BPM)

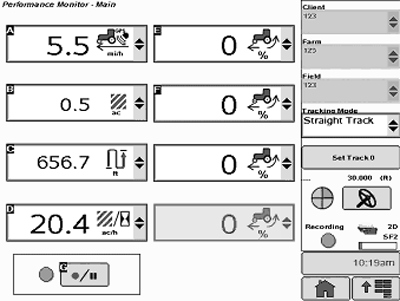

PC9072

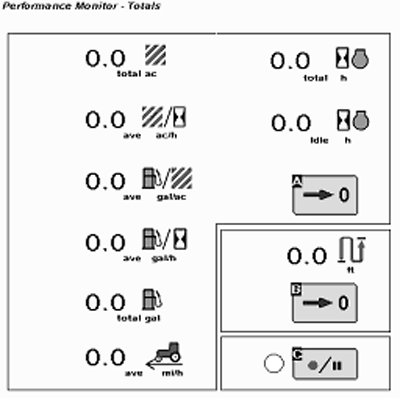

PC9073

The Basic Performance Monitor will operate on a GS2 Display anytime a StarFire Receiver is connected and a 12 volt source is supplied. (such as .GreenStar system on an ATV) In these conditions, functionality will be limited to: GPS Speed, Area Counter, Distance Covered, and Instantaneous Productivity.

Tractors 9020's 9000's
  8020's 8010's 8000's
  7010's 7000's 6000's
Sprayers 4020's 4710's 4700's
  4030's   (Gen IV Controller Only)



When the GS2 Display is connected to John Deere CCD-Based vehicles the following real-time functions become available:

  • Radar, Wheel, and GPS Speed
  • Instantaneous Productivity
  • Distance Counter
  • % Wheel Slip (Radar Connected)
  • Area Counter

Optional items based on vehicle platform and configuration are

  • PTO Status (Front & Rear)
  • Fuel per Area
  • Fuel per Hour
  • Radar Connection and Calibration

All functions available in BPM are also available in APM. If you are in a CAN-Based vehicle, the BPM will not display and the GS2 will default to APM only.

The BPM can be configured to operate in any of the user defined layout manager options available on the GS2 display.

OUO6050,0000CD5 -19-07OCT08-4/5

PC9036

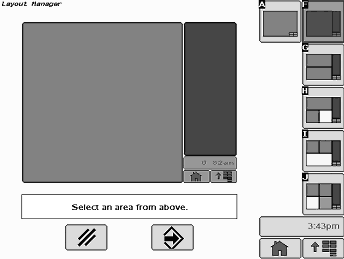

Layout Manager
PC9037

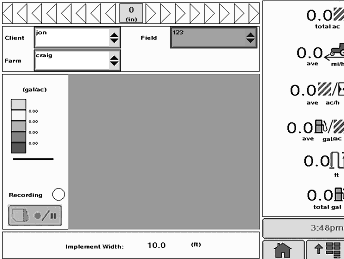

RUN (Home Screen)

Many customers utilize the layout example above for in-field operation of the BPM.

OUO6050,0000CD5 -19-07OCT08-5/5
