Calibrate Pressure Sensor

PC12326-UN-08OCT09

Calibrate Pressure Sensor

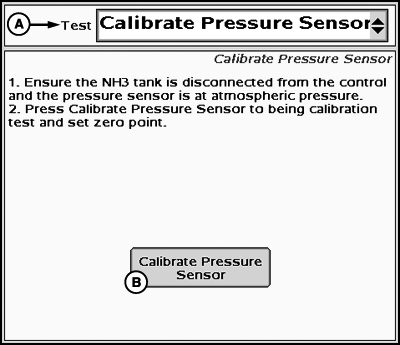

A - Tests Drop-Down Menu

B - Calibrate Pressure Sensor

1. Ensure the NH3 tank is disconnected from the control and the pressure sensor is at atmospheric pressure.

2. Press Calibrate Pressure Sensor to being calibration test and set zero point.

PC12327-UN-08OCT09

Calibrate Pressure Sensor

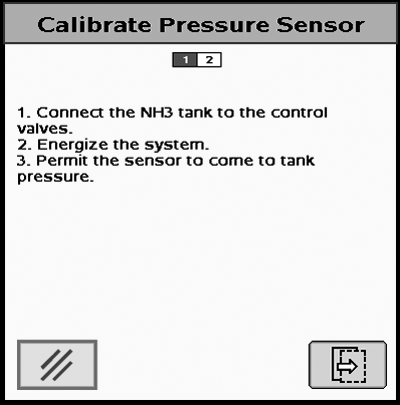

1. Connect the NH3 tank to the control valves.

2. Energize the system.

3. Permit the sensor to come to tank pressure.

PC12328-UN-08OCT09

Calibrate Pressure Sensor

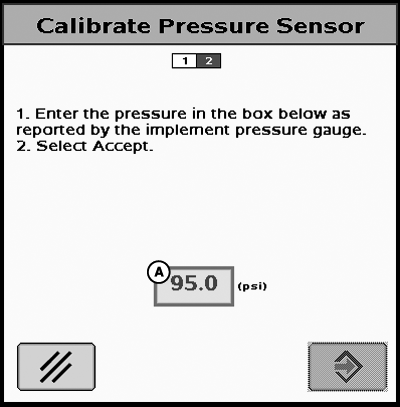

A - Pressure Input Box

1. Enter the pressure in the box below as reported by the implement pressure gauge.

2. Select Accept.
