Machine Setup

MENU >> GREENSTAR2 PRO >> EQUIPMENT allows access to MACHINE and IMPLEMENT setup screens.

PC8663
PC8663-UN-05AUG05

MENU Softkey

PC8661
PC8661-UN-02NOV05

GREENSTAR2 PRO Softkey

PC8677
PC8677-UN-05AUG05

EQUIPMENT Softkey

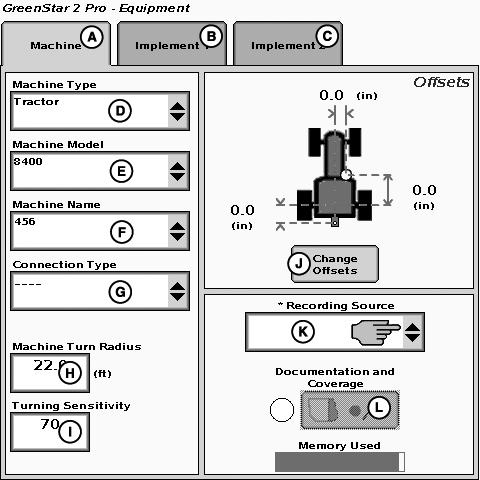

Machine Tab

PC10857IY
PC10857IY-UN-30MAR09

A - Machine Tab

B - Implement 1 Tab

C - Implement 2 Tab

D - Machine Type Drop-Down Menu

E - Machine Model Drop-Down Menu

F - Machine Name Drop-Down Menu

G - Connection Type Drop-Down Menu

H - Machine Turn Radius Input-Box

I - Turning Sensitivity Input-Box

J - Change Offsets Button

K - Recording Source Drop-Down Menu

L - Record/Pause Button

NOTE: All items and changes will be saved under the current machine name.

The Machine and Implement tabs are required to be populated with equipment information such as:

  • Type
  • Model
  • Name
  • Offsets

Machine Type—Vehicle type being used (e.g. Tractor, Combine, Sprayer).

Machine Model—Model number of the vehicle being used. For John Deere vehicles, model numbers will be available from the drop down list.

Machine Name—The name is used to further clarify which machine is being used. For instance, if there are two 8430’s in your operation, the machine names may be “John” and “Deere”, or “8430-1” and “8430-2”, or simply “1” and “2”. However, settings pertaining to the tractor such as turning radius, turn sensitivity, dimensions, etc. are stored to the name.

PC9890
PC9890-UN-05FEB07

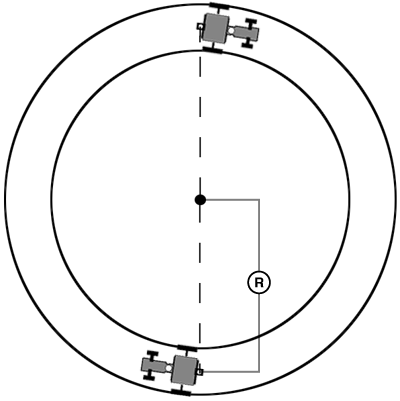

Machine Turn Radius

R - Machine Turn Radius

Machine Turn Radius—How sharp the machine can turn without an implement attached and without applying brake pressure. The turn radius is half the diameter as measured at the center of the rear axle of a row crop tractor, and the pivot point on tracks and 4WD tractors. Example: 8030 wheel tractors have a minimum turn radius of 6.1—6.7 m (20—22 ft). Choose a number to start with and change as needed for accuracy.

Turning Sensitivity—AutoTrac gain setting when the vehicle is in an automated turn. This is adjustable by the operator to improve performance (default 70).

Verify proper dimensions correspond to the Machine selected.

NOTE: Not all recording sources are available for all machines.

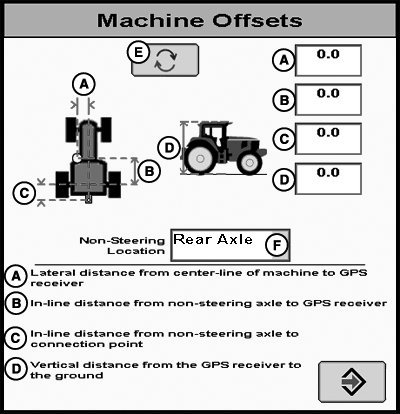

Machine Offsets

PC11211
PC11211-UN-16JUL08

Machine Offsets

A - Lateral distance from center-line of machine to GPS receiver

B - In-line distance from non-steering axle to GPS receiver

C - In-line distance from non-steering axle to connection point

D - Vertical distance from GPS receiver to the ground

E - Offset Toggle Button

F - Non-Steering Axle Location Drop-Down Menu

Press CHANGE OFFSETS button on Machine Setup screen.

Offsets are used to eliminate skips or overlaps due to an offset receiver.

To enter machine offsets:

  • Select input box.
  • Enter amount of offset in cm/in. using numeric keypad and select enter button.
  • Select the receiver toggle button to move the offset to the right or left of cab center.

If no receiver offset is required, then RECEIVER OFFSET input box should read 0.

Machine offsets:

  • A) Lateral Distance from center-line of machine to GPS receiver.
  • B) In-line distance from non-steering axle to GPS Receiver.
  • C) In-line distance from non-steering axle to connection point. The connection point is where the tractor connects to the implement (drawbar, hitch) except on 2 pt pivoting implements (large planter). In this case, measure the distance back to the pivot point immediately behind the hitch.
  • (D) Vertical distance from GPS receiver to the ground.

NOTE: Offset (D) is for use with Surface Water Pro.

JS56696,0000378-19-20071031
