Original GreenStar Monitor

PC8663-UN-05AUG05

PC8657-UN-05AUG05

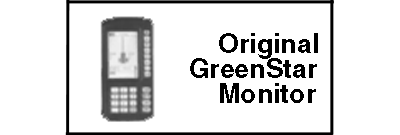

ORIGINAL GREENSTAR MONITOR button

Press: MENU button >> ORIGINAL GREENSTAR MONITOR button

Harvest Monitor is only available through the ORIGINAL GREENSTAR MONITOR application on the GS2 display. Once in the Original GreenStar Monitor application, operator interface will function the same as the Original GreenStar Display.

NOTE: The original GreenStar Monitor is only viewable as a full screen.

NOTE: For all 9x70 combines, Harvest Monitor is located within the Command Center. See Combine Operator’s Manual for more information.

IMPORTANT: If dual monitors are being used with an Original GreenStar Display on the system along with a GS2 display, Harvest Monitor will automatically function on the Original GreenStar Display and the Original GreenStar Monitor application will not be available and will not appear on menu.
