Utilizing Both The 91 m (300 ft) RTK Extension Harness And Low Loss Coax Cable

PC9555-UN-06NOV06

PC9556-UN-06NOV06

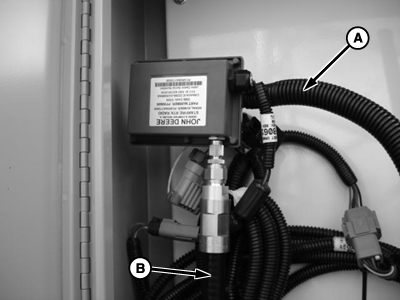

A - 91.4 m (300 ft) RS232 Cable from receiver

B - Coax cable connection from antenna

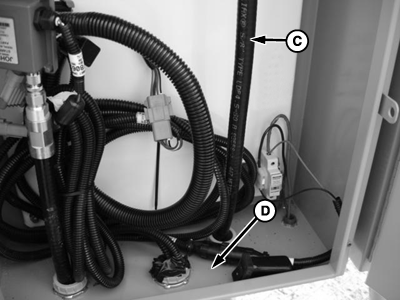

C - Coax running up tower to antenna

D - Coax looped under electrical box

This base station setup allows the placement of the receiver to be up to 91.4 m (300 ft) away from the radio, giving the base station an absolute clear view of the sky.

PC9557-UN-06NOV06

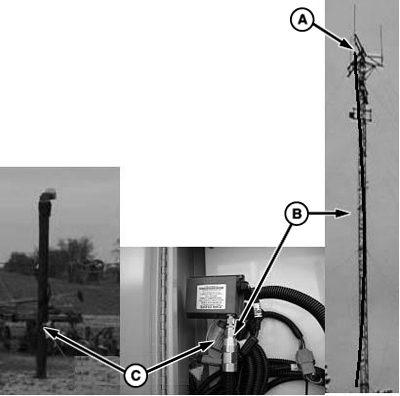

A - Antenna

B - Low-Loss Coax Cable

C - 91.4 m (300 ft) RS232 Cable

The radio, usually installed in a secure location at the bottom of a tower, is then connected to low loss coax that is ran up the tower to the antenna.
