Tuning Slope Compensation

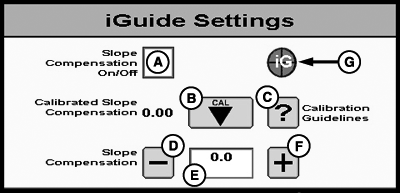

PC12220
PC12220-UN-27AUG09

A - Slope Compensation On/Off

B - Calibrated Slope Compensation Button

C - Slope Calibration Help Button

D - Decrease Slope Compensation Value

E - Calibrated Slope Compensation Value

F - Increase Slope Compensation Value

G - iGuide Status Pie

Slope Compensation works as a look-ahead for the vehicle. Slope Compensation helps aids in moving the vehicle up the hill to keep the implement on the guidance line.

Typical Slope Compensation values

Slope Range

Typical Value

Degree

Cm/Degree

Inches/Degree

0—2

1.3

0.5

2—5

1.3—3.8

0.5—1.5

Greater Than 5

2.0—8.9

0.8—3.5

  • 0—2 degrees - Slope Compensation may not be needed
  • 2—5 degrees - Use of Slope Compensation is recommended to provide moderate amount of machine correction
  • Greater than 5 degrees - Use of Slope Compensation is recommended

NOTE: If slope compensation value is above 4.00 after calibration, calibrate again. Recalibration is recommended to verify a consistent slope compensation value. If a consistent value is not achieved, review the slope compensation guidelines.

General Slope Compensation Guidelines:

  1. iGuide must be active to calibrate
  2. Calibrate at operating speed with implement at operating depth
  3. Do not calibrate when:
    • Roll angle is less than 2 degrees
    • Direction of roll angle may change
    • On tight curves
    • A line acquisition is occurring
  4. Slope compensation may not be required on slopes less than 5 degrees
  5. Stop calibration after calibrated slope compensation value stabilizes
