DATA LOGS tab
PC12054-UN-12MAY09
StarFire 3000 - Diagnostic
A - Readings tab
B - Data Logs tab
C - Over the Air tab
D - Radio Self Test tab (North America Only)
E - GPS Accuracy

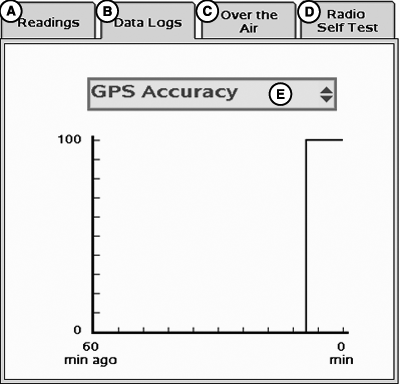

GPS Accuracy is a relative indication of overall differential GPS performance.
PC12053-UN-12MAY09
StarFire 3000 - Diagnostic
A - Readings tab
B - Data Logs tab
C - Over the Air tab
D - Radio Self Test tab (North America Only)
E - Position Dilution of Precision (PDOP)

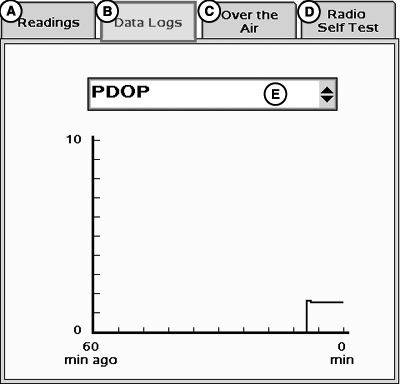

PDOP (Position Dilution of Precision) is a combination of vertical and horizontal error (or three dimensional). Lower PDOP is better. A value below 2 is considered optimal.
PC12052-UN-12MAY09
StarFire 3000 - Diagnostic
A - Readings tab
B - Data Logs tab
C - Over the Air tab
D - Radio Self Test tab (North America Only)
E - Satellites Used

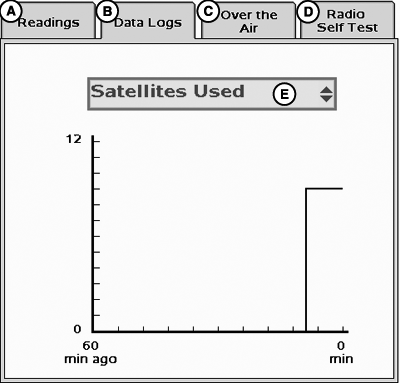

Satellites in Solution is the number of satellites that receiver is using in current position solution. Satellites are not used in solution until they get above 5 degrees elevation mask for WAAS/EGNOS, SF1, or SF2. Satellites are used until they drop below 5 degrees elevation mask for WAAS/EGNOS, SF1, SF2 or RTK.
PC12056-UN-12MAY09
StarFire 3000 - Diagnostic
A - Readings tab
B - Data Logs tab
C - Over the Air tab
D - Radio Self Test tab (North America Only)

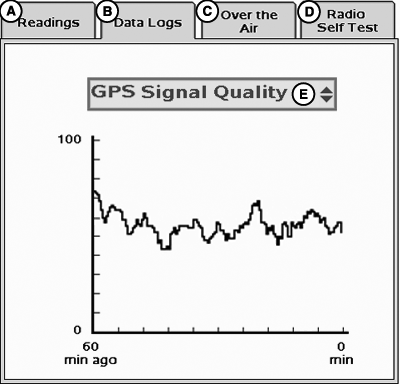

E - GPS Signal Quality
GPS Signal Quality shows quality of signals being received from GPS satellites. Unlike GPS Accuracy Indicator, Signal Quality does not include WAAS/EGNOS, SF1, SF2, or amount of time signal is received.
PC12051-UN-12MAY09
StarFire 3000 - Diagnostic
A - Readings tab
B - Data Logs tab
C - Over the Air tab
D - Radio Self Test tab (North America Only)
E - Differential Signal Quality

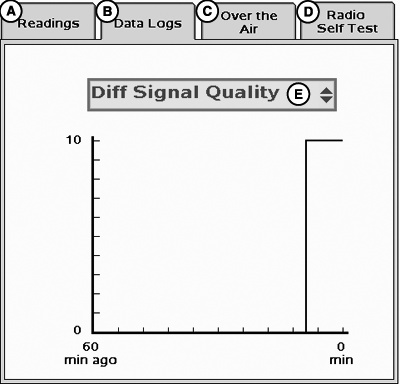

Differential Signal Quality is the strength of StarFire network signal (SF2 or SF1). Normal range is from 5 to 15, but maximum reading on indicator is 10. Numerical value is displayed to right of indicator. Any value above 5 is normal.
PC12050-UN-12MAY09
StarFire 3000 - Diagnostic
A - Readings tab
B - Data Logs tab
C - Over the Air tab
D - Radio Self Test tab (North America Only)
E - Navigation Mode

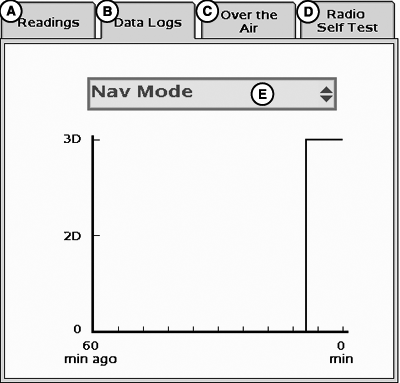

Navigation Mode is represented as three different types; No Nav, 2D and 3D. Navigation Mode helps determine if GPS position has been dropped in last 60 minutes.
PC12049-UN-12MAY09
StarFire 3000 - Diagnostic
A - Readings tab
B - Data Logs tab
C - Over the Air tab
D - Radio Self Test tab (North America Only)
E - Differential Mode

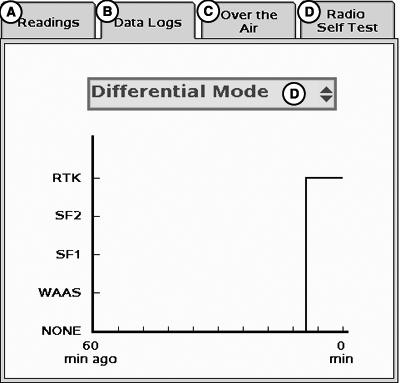

Differential Mode shows the level of differential signal that receiver has received over past 60 minutes. Level of signal purchased on receiver determines highest point on bar graph.|
