SERIAL PORT tab

PC13044-UN-10NOV10

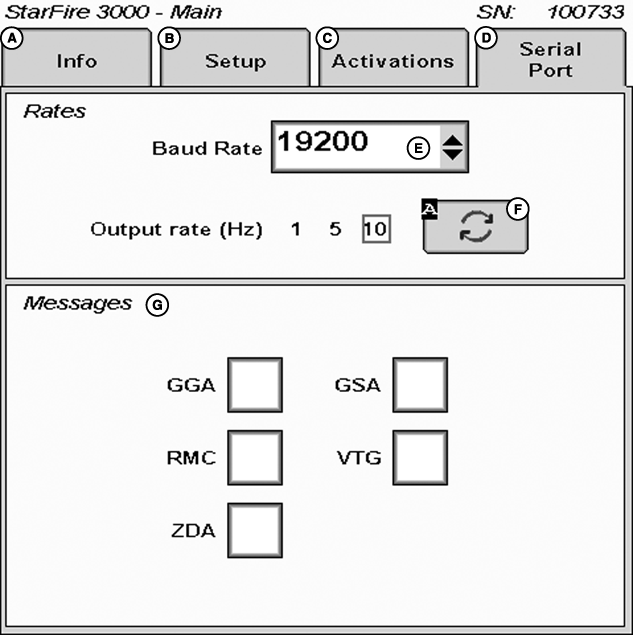

StarFire 3000 - Main—Serial Port tab

A - Info tab

B - Setup tab

C - Activations tab

D - Serial Port tab

E - Baud Rate

F - Output Rate

G - Messages

Configure RS232 and NMEA message information.

Rates:

• Define Baud Rate by selecting list input
  • Baud Rates: 4800, 9600, 19200, 38400, 57600 and 115200
• Define output rate by toggling
  • 1 Hz, 5 Hz, or 10 Hz

Messages:

• Allows for output of 5 different NMEA strings:
  • GGA, GSA, RMC, VTG, and ZDA
