SETUP tab

PC14949-UN-09MAY12

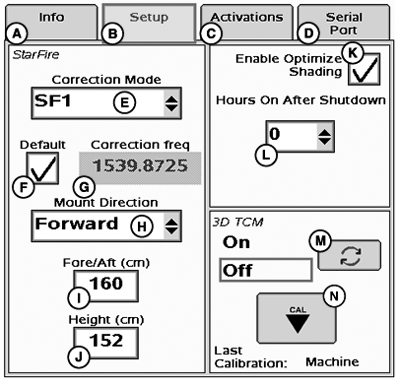

StarFire 3000 - Main - Setup Tab

A - Info Tab

B - Setup Tab

C - Activations Tab

D - Serial Port Tab

E - Correction Mode

F - Default Correction Frequency

G - Correction Frequncy

H - Mount Direction

I - Fore/Aft

J - Height

K - Enable Optimize Shading

L - Hours On After Shutdown

M - TCM On/Off Toggle Button

N - TCM Calibration Button

The SETUP tab allows for setup of the following:

• Correction Mode
• Correction Frequency
• Mount Direction
• Fore/Aft
• Height
• QuickStart
• Hours ON After Shutdown
• TCM Calibration
