StarFire 3000 Receiver

StarFire 3000 is a 55 channel, 5 frequency, GNSS receiver with integrated 3-axis Terrain Compensation. It is capable of using all 3 GPS Bands and it is GLONASS and GALILEO-Ready. The integration eliminates the need for a stand-alone Terrain Compensation Module (TCM) for improved guidance performance.

StarFire 3000 provides three different levels of accuracy. It can be upgraded to higher levels of accuracy as farming needs change without buying a new receiver.

Receiver is located on cab of machine. It receives global positioning and differential correction signal through a single receiver and integrates signal for use with system.

Terrain Compensation Module (TCM) is integrated into receiver and is a navigational aid used with receiver to enhance vehicle position and course parameters that GPS provides. TCM corrects for vehicle dynamics such as roll and pitch on side-slopes, rough terrain, or varying soil conditions.

StarFire 3000 Accuracy

StarFire 3000 Deluxe Shroud
Bracket Mounting Instructions

1.

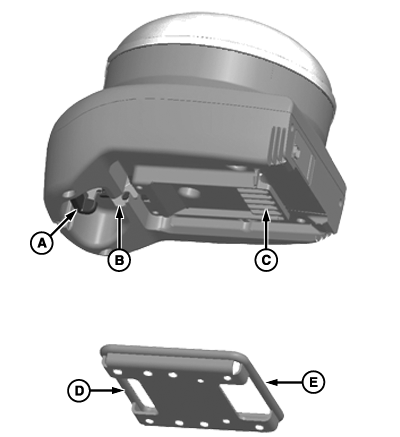

   PC12012-UN-22APR09

   A - Latch Release Lever

   B - Latch

   C - Rear Hook

   D - Latch Bar

   E - Rear Hook Pivot Bar

   Read “Handle Global Positioning Receivers and Brackets Safely” in the Safety section.

---




2.

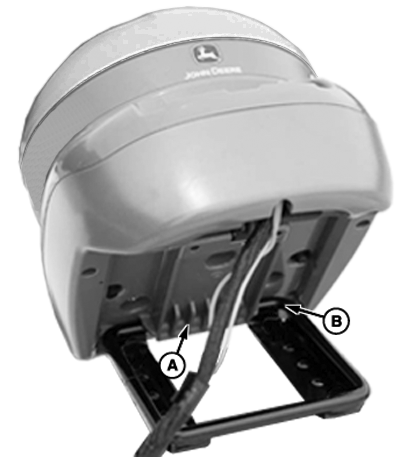

   PC12152-UN-14JUL09

   A - Rear Hook

   B - Rear Hook Pivot Bar

   Slide rear hook (A) back under rear hook pivot bar (B).

---




3.

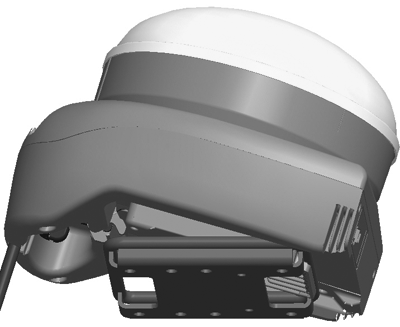

   PC11120-UN-10JUL08

   Pull receiver shroud downward until latch locks.

   Pull upward on front of shroud to verify positive latch.

---

Remove Deluxe Shroud

1.

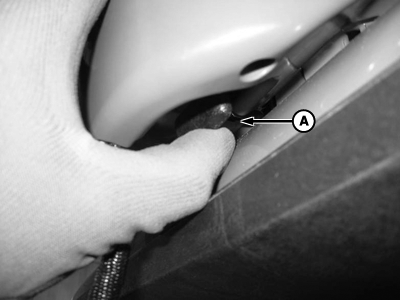

   PC12014-UN-22APR09

   A - Latch Release Lever

   Pull release lever (A) to release latch.

---




2. Pull up on front of shroud to remove.

StarFire Original Shroud
Bracket Mounting Instructions

1. Read “Handle Electronic Components and Brackets Safely” in the Safety section.

2.

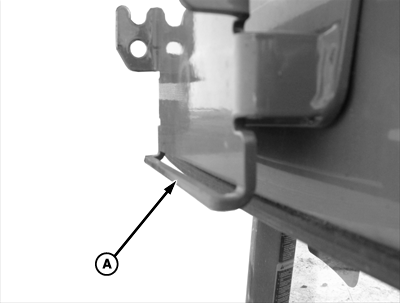

   PC8328-UN-02SEP04

   A - Bracket Bar

   Verify that vehicle side receiver bracket bar (A) is not bent inward or outward.

---




3.

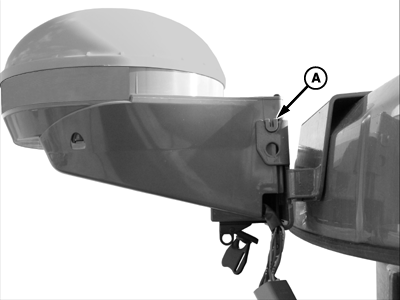

   PC12153-UN-14JUL09

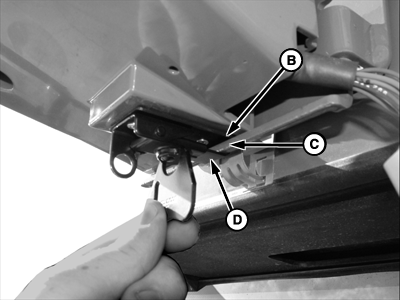

   PC8329-UN-31AUG04

   A - Mounting Peg

   B - Metal Tab

   C - Bracket Bar

   D - Receiver Latch

   Position StarFire iTC 3000 on bracket. Align mounting pegs (A) on receiver with notches in vehicle bracket. Ensure pegs are firmly seated in notches and metal tab (B) is above bracket bar (C).

---




4. Position receiver latch (D) around bracket bar. Turn latch handle to tighten latch around bracket bar. Bracket bar should compress slightly.

5.

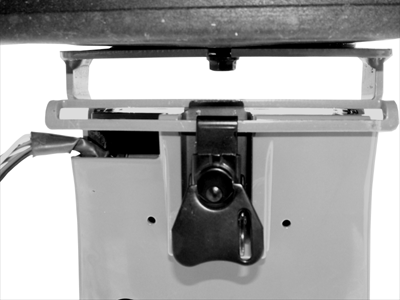

   PC8330-UN-31AUG04

   Fold latch handle upwards against receiver.

---
