Setup—TCM

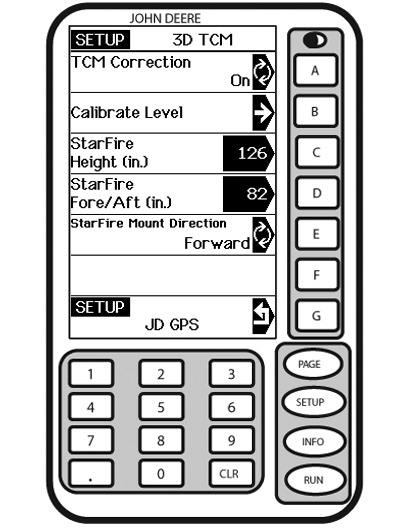

PC12067-UN-12MAY09

SETUP - TCM

A - TCM Correction

B - Calibrate Level

C - StarFire Height

D - StarFire Fore/Aft

E - StarFire Mount Direction

F - —

G - Return to Setup

Press: SETUP >> StarFire 3000 >> TCM SETUP

This screen allows operator to:

• Turn TCM ON/OFF
• Calibrate TCM for zero degree roll angle
• Manually insert height of receiver
• Manually insert fore/aft
• Change mounting direction of receiver
