Serial RS232 Output

PC12072-UN-12MAY09

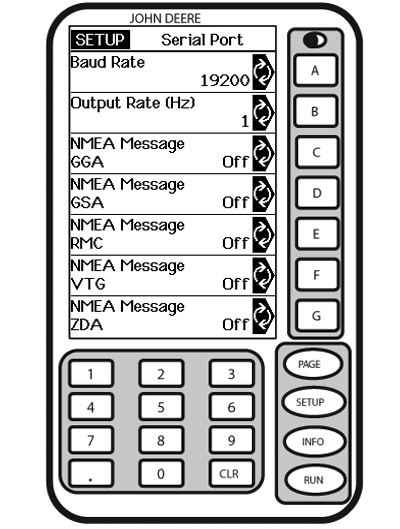

SETUP - SERIAL PORT

A - Baud Rate

B - Output Rate

C - NMEA Message, GGA

D - NMEA Message, GSA

E - NMEA Message, RMC

F - NMEA Message, VTG

G - NMEA Message, ZDA

Screen: SETUP - SERIAL PORT

Press: SETUP >> StarFire 3000 >> SERIAL RS232 OUTPUT

NOTE: These settings are only for NMEA serial port messages for communication with non-GREENSTAR systems.

Serial port baud output rates are: 4800, 9600, 19200, 38400, 57600 and 115200

The following items can be setup in SETUP - SERIAL PORT screen:

• Serial Port Baud Rate
• Serial Port Output Rate
• GGA Port Message
• GSA Port Message
• RMC Port Message
• VTG Port Message
• ZDA Port Message

Press letter button next to desired cell, toggle to desired selection.

Serial Port Output Rate

NOTE: Serial port settings do not affect GreenStar applications.

Press letter button next to SERIAL PORT OUTPUT RATE to toggle/select 1, 5, or 10 Hz.

Serial Port Messages

Press letter button next to SERIAL PORT MESSAGE to toggle/select between ON and OFF.
