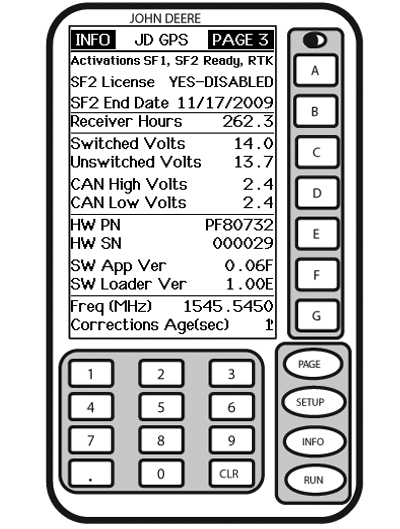

INFO - GPS - PAGE 3

PC12078-UN-13MAY09

INFO - GPS - PAGE 3

A - Activations SF1, SF2 Ready, RTK
SF2 License

B - SF2 End Date
Receiver Hours

C - Switched Volts
Unswitched Volts

D - CAN High Volts
CAN Low Volts

E - Hardware Part Number
Hardware Serial Number

F - Software Application Version
Software Loader Version

G - Frequency (MHz)
Corrections Age (sec)

Screen: INFO- GPS - PAGE 3

Press: INFO >> StarFire 3000 >> PAGE >> PAGE

This page shows detailed information about receiver. This information will help troubleshoot receiver if a problem occurs.

Activations: Activations displays all activation codes that have been entered into receiver. SF1, SF2, and/or RTK. Visit www.StellarSupport.com for additional activations.

SF2 License: If receiver currently has active SF2 license, YES will be displayed. If not, NO will be displayed.

SF2 End Date: Date SF2 license will expire.

Receiver Hours: This cell displays number of hours on receiver.

Serial Number: This cell shows receiver serial number. This is required to obtain a StarFire signal license.

Hardware Version: This cell shows part number of receiver.

Software Version: This cell displays version of software being used by receiver.

NOTE: To acquire the latest version of software, visit www.stellarsupport.com or contact your John Deere dealer.
