YARA N-Sensor

NOTE: The YARA N-Sensor is for use in Europe.

NOTE: The GreenSeeker activation enables the YARA N-Sensor module.

IMPORTANT: FieldDoc Connect Cable must be wired for COM Port 2 at the GreenStar 3 display. If no implement controller is connected to the GS3 Display, the YARA N-Sensor cannot be selected as a prescription.

1. Connect the implement controller to the GS3 Display.

2. Attach YARA N-Sensor hardware according to the YARA N-Sensor manual.

3. Connect the YARA N-Sensor display to the GreenStar RS232 cab connector.

4. Calibrate—Setup YARA N-Sensor System according to the YARA N-Sensor manual.

5.
   PC8663-UN-05AUG05

   MENU button


   PC12685-UN-14JUL10

   GREENSTAR 3 PRO button


   PC8676-UN-05AUG05

   RESOURCE/CONDITION softkey

   Select MENU button >> GREENSTAR 3 PRO button >> RESOURCE/CONDITIONS softkey >> RESOURCES tab

---




6. Fill in Client, Farm, Field, and Task information to enable documentation.

7.
   PC8663-UN-05AUG05

   MENU button


   PC12685-UN-14JUL10

   GREENSTAR 3 PRO button


   PC8677-UN-05AUG05

   EQUIPMENT softkey

   Select MENU button >> GREENSTAR 3 PRO button >> EQUIPMENT softkey >> MACHINE tab

   Fill in the machine information.

---




8. Press COM Port button.

9.
   PC12921-UN-27SEP10

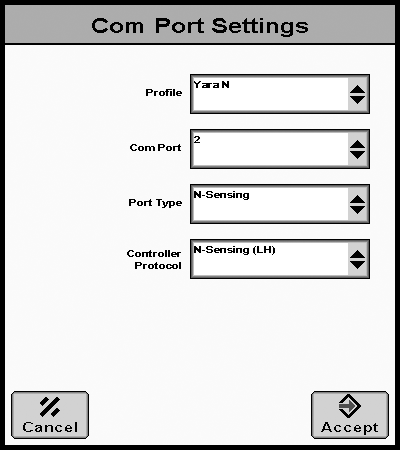

   COM Port Settings

   Select NEW in Profile drop-down box then enter desired Profile name.

---




10. Assign Com Port to number 2.

11. Select N-Sensing in Port Type drop-down box.

12. Select N-Sensing (LH) in Controller Protocol drop-down box.

13. Then press ACCEPT button to continue.

14.
    PC8663-UN-05AUG05

    MENU button


    PC12685-UN-14JUL10

    GREENSTAR 3 PRO button


    PC8678-UN-05AUG05

    DOCUMENTATION softkey

    Select MENU button >> GREENSTAR 3 PRO button >> DOCUMENTATION softkey >> PRODUCT APPLICATION tab

---




15.
    PC12850-UN-27SEP10

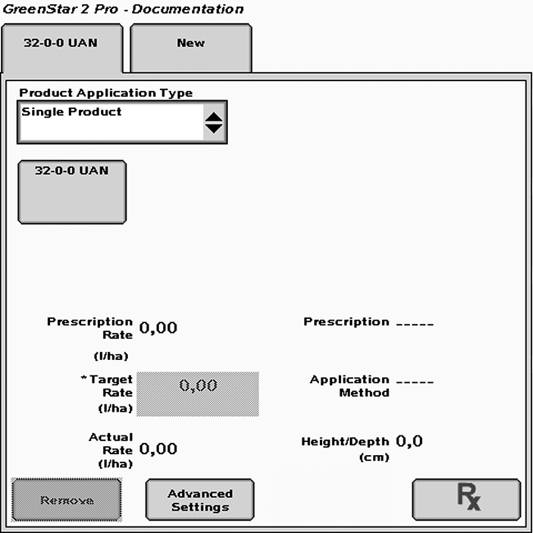

    Select auto-generated product application tab.

    NOTE: The product application tab needs to be generated manually in case of Field Doc Connect.

---




16. Select Rx button to indicate prescription.

17.
    PC12922-UN-27SEP10

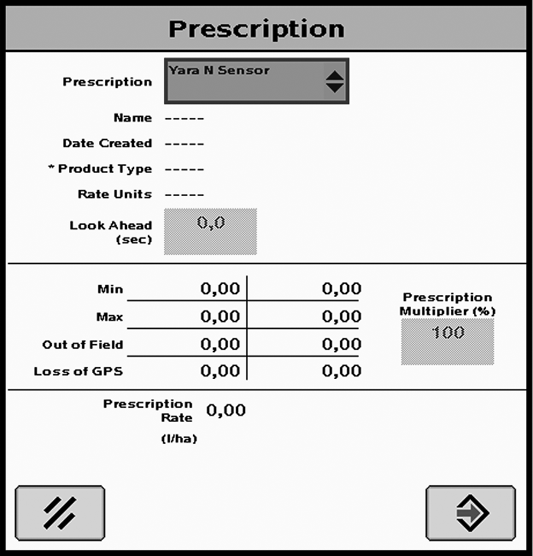

    Prescription

    Select YARA N-Sensor from Prescription drop-down list.

---




18. Select the ENTER button to accept the prescription.

19. Setup is complete.

    GreenStar 3 will read the rate provided by the YARA N-Sensor and will send it as prescription rate to the connected implement controller.
