Performance Monitor

The GS3 2630 display comes standard with Universal Performance Monitor (UPM), which provides productivity information such as vehicle speeds, acre counters, and fuel efficiency data. The information available to be displayed in UPM depends on the vehicle on which the display is installed. There may be slight differences between the values from UPM and the vehicle monitor due to rounding of decimals within UPM calculations.

30 Series Tractors

On 30 series John Deere tractors the GS3 2630 display will disable UPM and show Advanced Performance Monitor (APM) from the tractor TECU. APM is a feature of the tractor and is similar to UPM. Read your tractor Operator’s Manual for information on APM.

Dual Display Operation

The GS3 2630 display maybe installed on the corner post of a John Deere vehicle that also has a display on the armrest running UPM. In this case, the values displayed by UPM on the corner post display will be sent from UPM on the armrest display. Therefore the values will be identical on both displays.

NOTE: Resetting UPM Totals on one display will also reset UPM Totals on the other display.

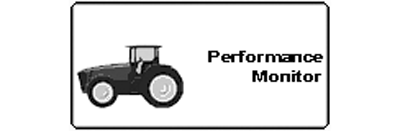

PC12867-UN-16SEP10

UPM Performance Monitor Icon

• Universal Performance Monitor will be denoted in the display menu with the UPM Performance Monitor Icon.

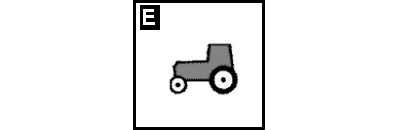

PC9046-UN-17APR06

APM Performance Monitor Icon

• APM will be denoted in the display menu with the APM Performance Monitor Icon.
