Auxiliary Control Safety Signs

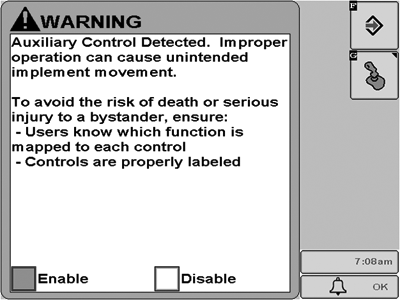

Auxiliary Control Detected

PC13154-19-17FEB11

This message occurs when the system detects an Auxiliary Control. Press “Enter” key F to navigate to the home page. Go to the Auxiliary Controls page by pressing the “Controls” key G to review or change the Auxiliary Control assignments.

If “Disable” is selected (default), all Auxiliary Controls will be disabled.

If “Enable” is selected, all Auxiliary Controls will be enabled.

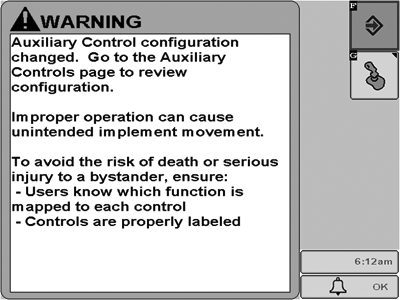

Auxiliary Control Configuration Changed

PC13155-19-17FEB11

This message occurs when the system detects an Auxiliary Control and that configuration has been modified during run time (e.g. additional input and/or implement added). Press “Enter” key F to navigate to the home page. Go to the Auxiliary Controls page by pressing the “Controls” key G to review or change the Auxiliary Control assignments.

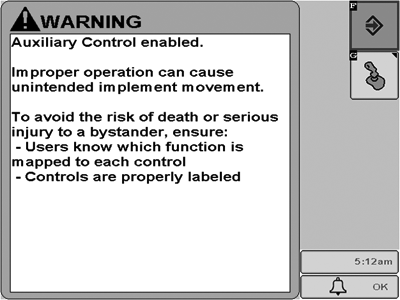

Auxiliary Control Enabled

PC13146-19-17FEB11

This message occurs when the operator enables the Auxiliary Control manually. Press “Enter” key F to navigate to the home page. Go to the Auxiliary Controls page by pressing the “Controls” key G to review or change the Auxiliary Control assignments.

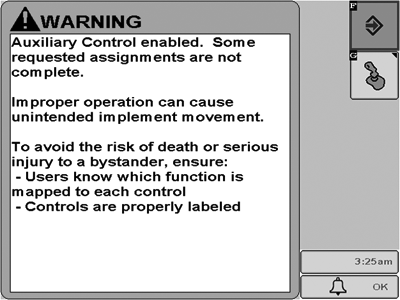

Auxiliary Control Enabled

PC13153-19-17FEB11

This message occurs when Auxiliary Control has been enabled manually, however, not all assignments have been completed successfully. Press “Enter” key F to navigate to the home page. Go to the Auxiliary Controls page by pressing the “Controls” key G to review or change the Auxiliary Control assignments.

IMPORTANT: If the “Enter” key F is selected, the implement only follows the assignments which have been completed successfully, however, there are still assignments which are not complete. It is necessary to review the Auxiliary Controls mapping screen by pressing the “Controls” key G and complete all assignments before enabling Auxiliary Controls.
