ISO Implements

PC16901-UN-14MAY13

PC16900-UN-14MAY13

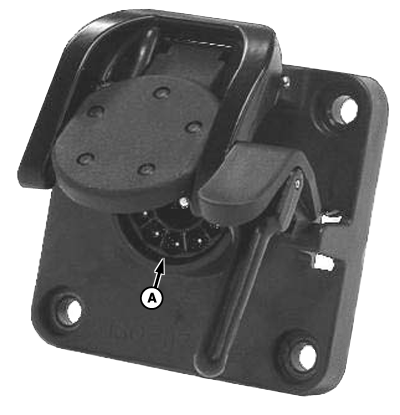

A - ISO Connector (IBBC)

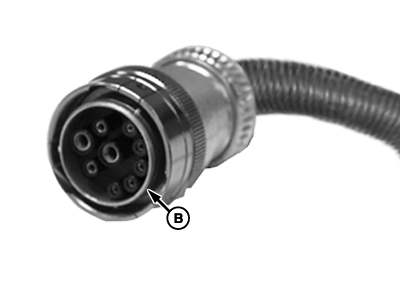

B - ISO Plug-in (IBBP)

The John Deere GreenStar 3 2630 display supports ISOBUS 11783 compliant implements. These implements can be displayed and operated with this display. A standardized connector in the back of the tractor allows the connection of such implements. An ISO compliant implement is always equipped with a ISO connector (A) that fits into the ISO Plug-in (B). ISOBUS implements may support the Aux Control functionality (See Aux Control section for more details).

See ISOBUS User guide on Stellarsupport.com, to find out more about ISO specific connectors and Plugs.

Task Controller

PC13246-UN-15APR11

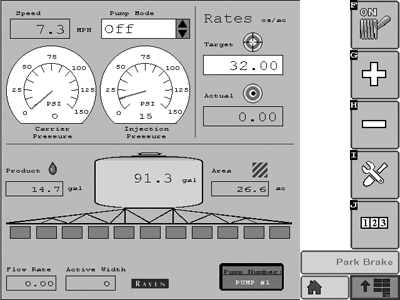

Raven Direct Injection

Task Controller (TC) is a part of the software of a John Deere 2630 display.

As described by its name, TC controls one or several of the following tasks:

• John Deere section control
• Map-based prescriptions
• Documentation

Task Controller supports communication with some IOSBUS compliant implements. Communication depends on software compatibility between display and implement. Once the implement communicates with Task Controller on the Display, implement type will be grayed out and recording source will be set to auto.

NOTE: The current Task Controller implementation is limited to certain machines. It can only communicate with one implement at a time.

Implement width, sections, operation type, implement type, machine type, recording source, target and actual rate parameters are set automatically with Task controller based on the ISO implement.

Virtual Terminal and Virtual Implement

PC13245-UN-15APR11

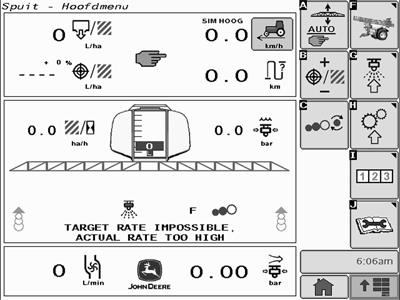

John Deere Pull-type Sprayer Menu

Virtual Terminal (VT) is a part of John Deere GreenStar 2 and GreenStar 3 display software.

• VT is a standardized display for all controller and implements on the BUS. John Deere Virtual Terminal offers a size of 640 x 480 pixels.
• The implement loads its graphic user interface, also referred to as Virtual Implement (VI), into the VT as indicated. Example: The VI of a John Deere Sprayer is displayed by a 2630.
• When VI gets loaded into the 2630 display, a status bar will show how far the upload has progressed.
• VT is comparable to a monitor on personal computers, which displays information processed by a control unit on the implement. This means that all pages shown in the VT (implement icon on main menu) are neither controlled nor handled by the 2630 Software.

The John Deere pull-type sprayer presents its information as shown. The VI allows the control and setup of all machine functions like tank volume, boom sections, spray rate control, etc. See specific product Operator’s Manual for details.
