Implement Receiver Lateral Offset

PC14926
PC14926-UN-27APR12

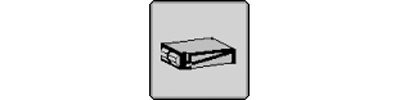

Application Controller 1100 Button

PC13072
PC13072-UN-16NOV10

Application Controller Main Softkey

PC17968
PC17968-UN-07NOV13

Implement Steer Setup Button

PC17969
PC17969-UN-07NOV13

Implement GPS Offset Button

PC17970
PC17970-UN-07NOV13

Position Shifted Drop-down Menu

PC17971
PC17971-UN-07NOV13

Left/Right Shift

If implement receiver cannot be mounted on center line of implement, enter a lateral offset to account for receiver location.

NOTE: Implement GPS offset is critical to performance of system.

  1. Select Application Controller 1100 button.

  2. Select Application Controller Main softkey.

  3. Select Implement Steer Setup button.

  4. Select Implement GPS Offset button.

  5. Select offset direction by choosing either Position Shifted Right or Position Shifted Left from drop-down.

  6. Enter distance from receiver to center line of implement in Left/Right Shift box.

BA31779,00006B0-19-20131115
