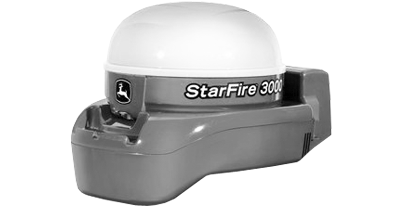

StarFire™ Receiver

• StarFire™ Receivers are required for machine and implement.
• Both receivers must have an RTK signal level unless shared signal is used. NOTE: For optimal performance, both receivers must be the same model.

• Install implement receiver less than 4.0 m (13.1 ft.) above ground level.
• Implement receiver must be connected to machine’s implement CAN Bus through ISO connector.

Shared Signal

NOTE: Shared signal engages automatically after setup of system is complete. It is not possible to engage or disengage shared signal.

When using shared signal with RTK, machine receiver must have an RTK radio installed. Implement receiver does not require RTK activation or radio when utilizing shared signal.

If Active Implement Guidance and iGrade™ are used, shared signal does not function if an iGrade™ function is active.

PC13797-UN-02JUN11

PC17672-UN-16SEP13

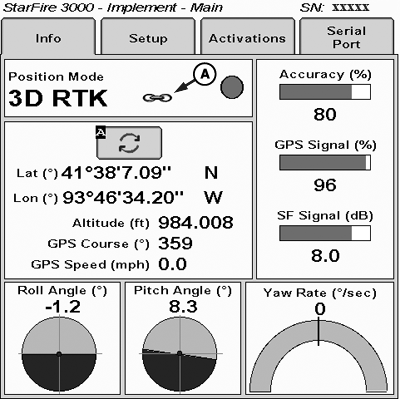

A - Linked Receiver Implement Page

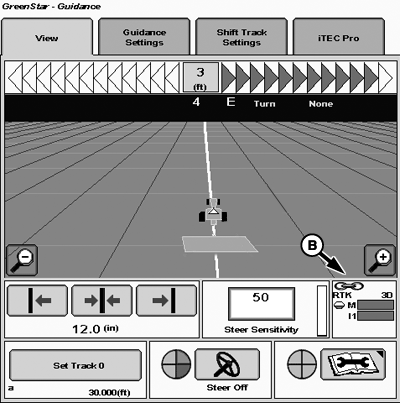

B - Linked Guidance View Page

Shared signal automatically links and operates with Active Implement Guidance when the following requirements are met:

• StarFire™ 3000 Receivers on machine and implement.
• GreenStar™ 3 2630 Display.
• SF2 or RTK activation on machine receiver.
• SF1, SF2, or RTK on implement receiver.
• Only Implement Steer or Implement Shift function is selected.
• Fore and aft values for implement receiver are set to 0.
• Latest software updates on display, receivers, and application controller.

  Shared Signal Implement Accuracy Specifications

  	Implement RTK	Implement SF2	Implement SF1
  Machine RTK	+/- 5 cm (2 in.)	+/- 5 cm (2 in.)	+/- 5 cm (2 in.)
  Machine SF2	+/- 8—13 cm (3—5 in.)	+/- 8—13 cm (3—5 in.)	+/- 8—13 cm (3—5 in.)

  NOTE: Values in table are GPS accuracy and not steering accuracy. Actual performance depends, but not limited to implement setup and system limitations.


To verify receivers are linked, check Implement Receiver Main page (A), or Guidance page (B). Link symbol is displayed if receivers share signal.

PC13798-UN-02JUN11

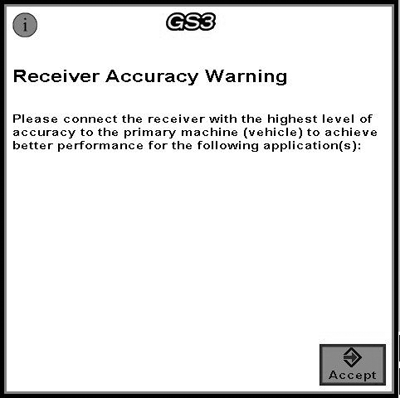

Accuracy Warning

NOTE: Accuracy warning does not disable shared signal.
