Disable Active Implement Guidance

PC12961-UN-29AUG11

Setup Softkey

PC17972-UN-07NOV13

Control Selection Button

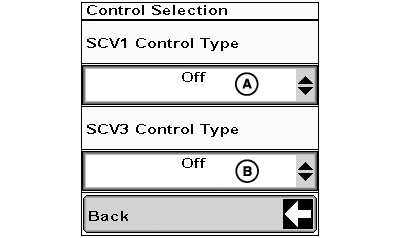

PC18270-UN-02JAN14

SCV Control Selection

A - SCV 1 Control Type

B - SCV 3 Control Type

CAUTION: Do not use Active Implement Guidance on roadways.

To prevent serious injury, disable Active Implement Guidance by removing SCV control before entering roadways.

To disable Active Implement Guidance by removing SCV control:

1. Select Setup softkey.

2. Select Control Selection.

3. Set SCV 1 (A) and SCV 3 (B) Control Type to Off.
