Active Implement Guidance System

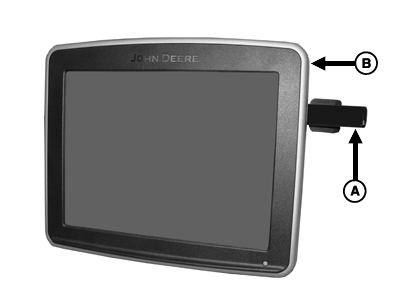

PC13504-UN-19MAR13

GS3 2630

A - USB Memory Device

B - GS3 2630 Console

Being an electronic controller, there is minimal service required to maintain performance levels. However, the John Deere AMS commitment to continued improvement and quality may lead to periodical software updates available for this controller. To maintain optimum performance, these updates should be loaded.

For the GS2/GS3 system this is accomplished when you perform a “live update” using a connection to the StellarSupport™ website (www.stellarsupport.com). Updates, once downloaded must be loaded onto your CompactFlash for GS2 or USB memory device (A) for GS3. After updating the memory device, the next time you insert the Compact Flash or USB memory device into your display console (B) the operating system will prompt you that updates are available. Accepting the updates will automatically update your Active Implement Guidance system to the most recent version.
