John Deere Documentation Basics

Documentation on GS2 1800 display is capable of recording field totals given rates provided by ISOBUS implements, or manually entered. Feature does NOT include recording rate maps or yield maps.

1.
   PC13211-UN-28MAR11

   Documentation Softkey

   Make sure John Deere Documentation Basic License is activated on the display. See Managing Activations section

---




2. Complete the Standard Setup Wizard to setup your GreenStar system for Documentation. See the Setup Wizard section earlier in this manual.

3. Select Documentation softkey.

4.
   PC13212-UN-28MAR11

   Totals Softkey

   Select Totals softkey.

---

PC13213-UN-28MAR11

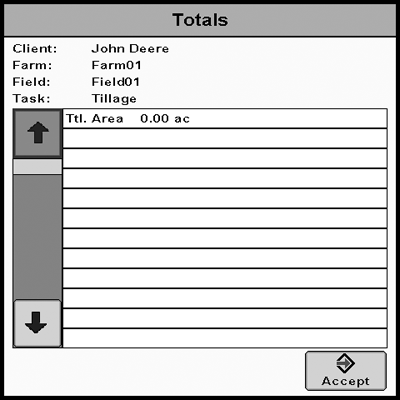

Totals

Documentation Totals displays the cumulative totals for the current Field and Task.

Display will show totals provided by an ISOBUS implement. If no ISOBUS implement is connected, manually calculated area will be displayed
