Alarm - GreenStar Setup Information Corrupt

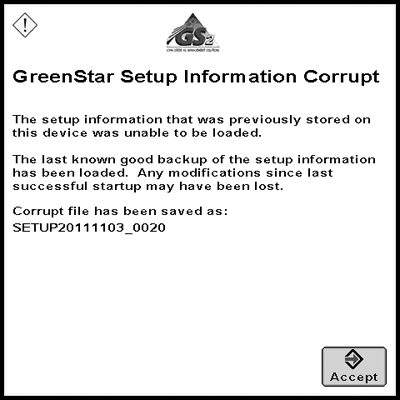

PC13673-UN-12DEC11

Backup File Loaded

Every time the display loads setup data when it successfully boots up, it also creates/updates a backup of that setup data.

If the setup data in the internal memory becomes corrupt, the display will try to load the backup setup data.

If the backup file is good, all the user needs to do is acknowledge that the backup has been loaded.

Any modifications since last successful startup may have been lost.

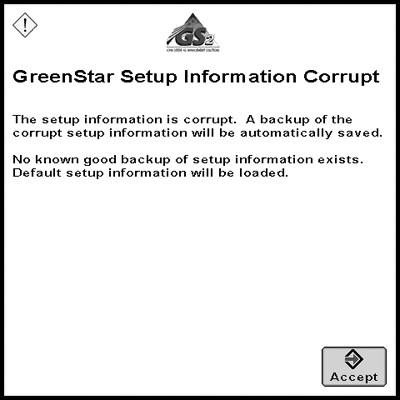

PC13674-UN-12DEC11

No Good Backup Available

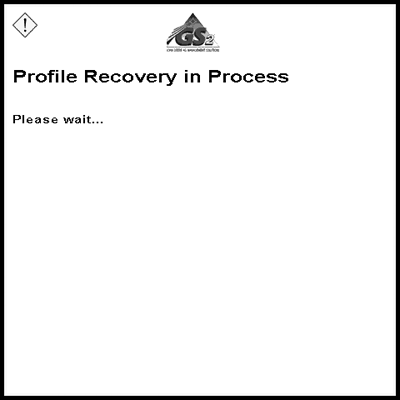

PC13677-UN-12DEC11

Recovery in Progress

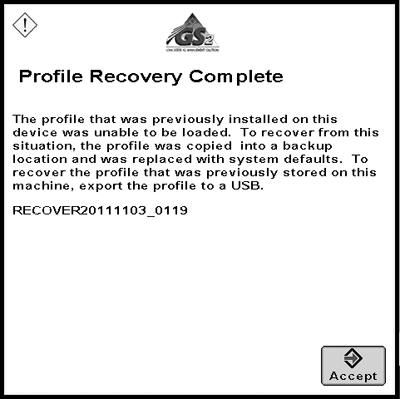

PC13676-UN-12DEC11

Default Setup Loaded

If the backup file is missing or corrupt, the display will load default setup data. The user will need to save setup data to the USB drive and load it to the display.
