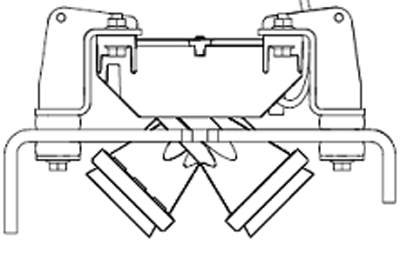

Dual Beam Radar Sensor Only (Automatic Calibration)

PC9122-UN-17APR06

On tractors equipped with factory or dealer installed dual beam radars, it is not necessary to calibrate vehicle speed. Reset % wheel slip value if:

• Wheel speed and radar speed are not equal when slip is not present
• Wheel slip is displayed where slip should not be present
• Change tire size

Reset % slip value by driving tractor on a hard level surface at a constant speed of 8 kph (5 mph). Press and hold % Slip Switch (A) for a minimum of 3 seconds to zero out slip. It is recommended to have an implement connected to the tractor but not engaged in the ground (no load).
