Operating Original GreenStar Monitor Function

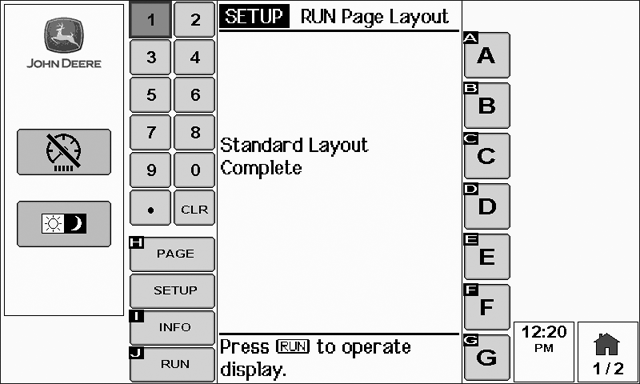

PC10857GI-UN-28OCT08

PC10857GJ-UN-28OCT08

Menu Button

PC8657-UN-05AUG05

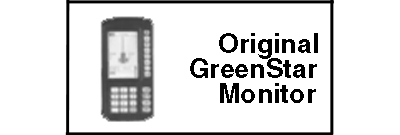

ORIGINAL GREENSTAR MONITOR button

To access the Original GreenStar Monitor application select: Menu > Original GreenStar Monitor

The Original GreenStar Monitor application is used to display information from controllers that are designed for use with the original GreenStar display.

See the implement’s Operator’s Manual for operating implements using Original GreenStar display. Monitor application is compatible with following John Deere 2.5 v controllers:

• SeedStar Gen 1 Seed Monitor and Variable Rate Drive
• SeedStar Gen 2 Seed Monitor and Variable Rate Drive
• SeedStar Air Cart
• SprayStar
• Accu-Depth
• Original StarFire Receiver
• TCM
• European Drill
• European Sprayer
• European Spreader European Wrapping Baler
• Rauch Axera Fertilizer Spreader
• Harvest Monitor (Except 70 Series Combines)
• Self Propelled Forage Harvester
