Configuring the Performance Monitor

PC10857GE-UN-28OCT08

PC10857GJ-UN-28OCT08

Menu Button

PC8658-UN-05AUG05

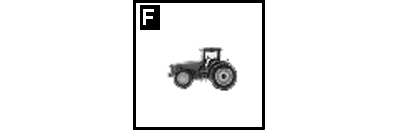

BPM Performance Monitor Icon

PC8791-UN-18OCT05

Performance Monitor softkey

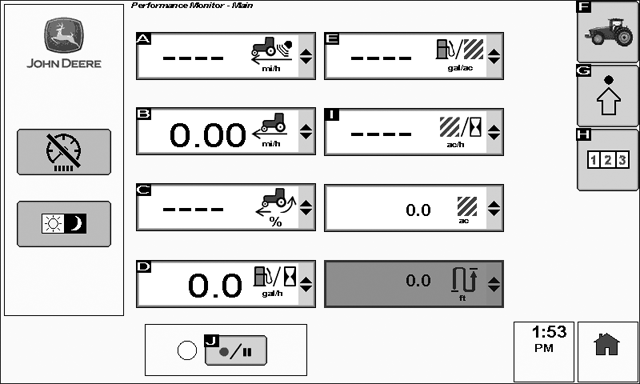

To view the Basic Performance Monitor main page select: Menu > Performance Monitor

Performance Monitor may be configured to display the most commonly viewed information.

To change the type of information shown in a particular box, select the box and choose one of the other options from the drop-down list. The available options will be dependent upon vehicle type.
