Configuring Auxiliary Controls

PC8663-UN-29APR15

MENU button

PC8654-UN-05AUG05

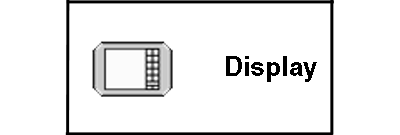

DISPLAY button

PC8691-UN-16OCT07

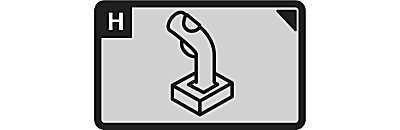

AUXILIARY CONTROLS softkey

To view the Auxiliary Controls page select: Menu > Display > Settings > Auxiliary Controls

Avoid death or serious injury to a bystander from unintended implement movement by understanding how this display operates the functions of each implement.

Read the Operator’s Manual for each implement.

ISO compliant auxiliary controls may be used to control ISO compliant implement functions.

Auxiliary Controls feature is used to configure implement functions to available controls. The display does not operate the implement functions, but is used as an interface to map functions to input controls.

Example: A tractor has a display with a two-switch control box connected to the CAN system. A chemical sprayer is attached to the tractor and it's ECU connected to the network. The sprayer has two controlled functions: pump on/off and nozzles on/off. Using the Auxiliary Control feature, each device (function) is mapped to one of the input control switches, to operate that implement function.

When a different implement's ECU is connected to the network, Auxiliary Control is used to reassign the switches to control the functions of that implement (cultivator raise/lower, wing fold/unfold).
